2.8A DC Nema 17 High Temp Stepper Motor High Temperature 2.8V 0.59N.M

2.8A DC Nema 17 High Temp Stepper Motor High Temperature 2.8V 0.59N.M

Brand Name:	Casun
Model Number:	G42SHD4425-24BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

590mN.m

Detent Torque:

20mN.m

Current:

2.8A

Rated Voltage:

2.8V

Motor Length:

48mm

Shaft:

Milling Flat Shaft 24mm Length

Insulation Class:

Class H (180℃)

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

DC Nema 17 High Temp Stepper Motor

2.8A DC High Temp Stepper Motor

Stepper Motor High Temperature 2.8V

Product Description

2.8A DC Nema 17 High Temp Stepper Motor High Temperature 2.8V 0.59N.M

42×42×48mm 2 Phase 2.8A DC Nema 17 High Temperature 2.8V Stepper Motor 0.59N.m with CE ROSH certification. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Multiple international certifications
Established in China for 12 years with over 800 customers served

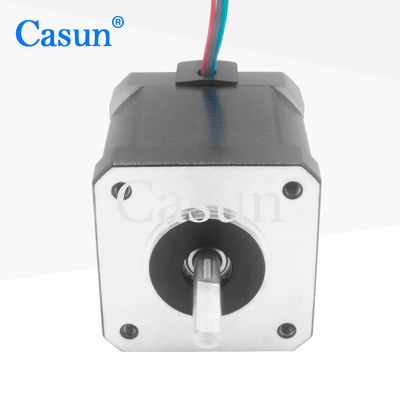

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	590 mN.m
Resistance	1.4 ohm
Inductance	3.0 mH
Rotor Inertia	82 g-cm²
Motor Weight	0.42 kg
Number of Leads	4
Insulation Class	Class H (180℃)

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Available: If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
