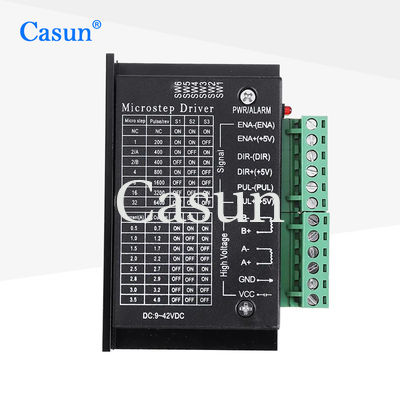

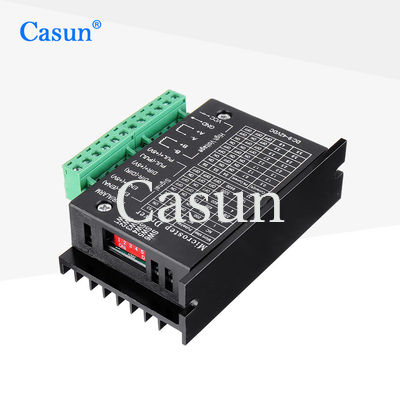

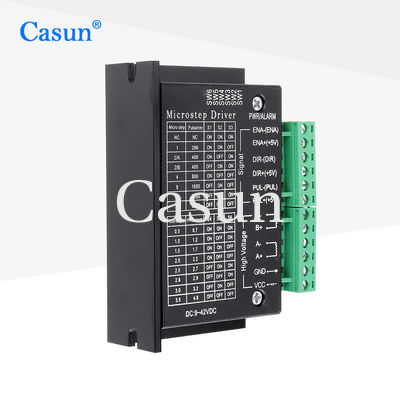

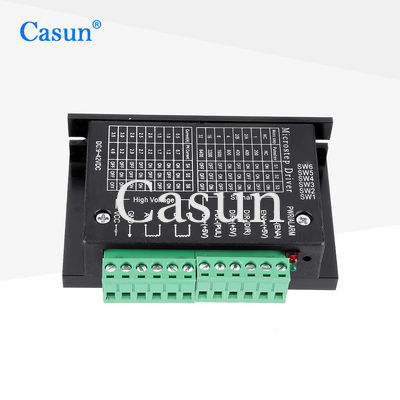

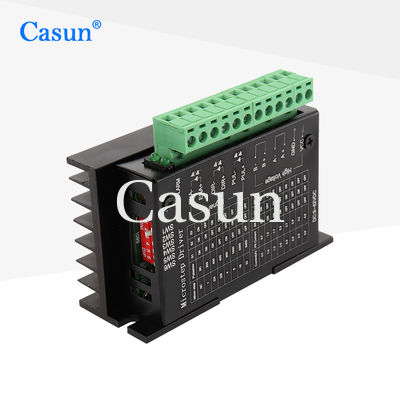

TB6600 2 Phase Stepper Motor Driver 32 Subdivision 3D Printer Stepper Driver

Name: TB6600 2 Phase Stepper Motor Driver 32 Subdivision 3D Printer Stepper Driver
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: TB6600
Price: 4.00 USD
Availability: InStock

Brand Name:	Casun
Model Number:	TB6600
MOQ:	1pc
Price:	$3-$6
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5000pcs+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Color:

Black

Size:

96*57*28mm

Voltage:

9-24V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

38X29X18cm

Highlight:

TB6600 2 Phase Stepper Motor Driver

TB6600 3D Printer Stepper Driver

Stepper Motor Driver 32 Subdivision

Product Description

TB6600 2 Phase Stepper Motor Driver 32 Subdivision 3D Printer Stepper Driver

TB6600 Stepper Motor Driver 32 subdivision 4.0A 42V pulse 3-24v controller 3D Printer driver

Product Specifications

Product Name	TB6600
Size	96×57×28mm
Supply Voltage	9-24V
Color	Black

Technical Details

This drive is an upgraded version of the TB6600, with microstepping increased to 32 segments for high-precision applications. Compatible with 42, 57, and 86 type 2-phase and 4-phase stepper motors (4-wire, 6-wire, and 8-wire configurations).

Micro Step	Pulse/Rev	S1	S2	S3
NC	NC	ON	ON	ON
1	200	ON	ON	OFF
2/A	400	ON	OFF	ON
2/B	400	OFF	ON	ON
4	800	ON	OFF	OFF
8	1600	OFF	ON	OFF
16	3200	OFF	OFF	ON
32	6400	OFF	OFF	OFF

Current (A)	PK Current	S4	S5	S6
0.5	0.7	ON	ON	ON
1.0	1.2	ON	OFF	ON
1.5	1.7	ON	ON	OFF
2.0	2.2	ON	OFF	OFF
2.5	2.7	OFF	ON	ON
2.8	2.9	OFF	OFF	ON
3.0	3.2	OFF	ON	OFF
3.5	4.0	OFF	OFF	OFF

Key Features

Compatible with 42-phase, 57-phase, and 86-phase stepper motors (4-wire, 6-wire, and 8-wire)
9V-42V DC power supply
H-bridge bipolar constant-phase flow-driven
Maximum output current of 4.0A with eight selectable levels
Up to 32 segments with six microstepping modes available
High-speed optical isolation for input signals
Standard common anode single pulse interface
Offline hold function
Semi-enclosed chassis for demanding environments
Semiautomatic current lock function for energy efficiency
Built-in thermal protection and overcurrent protection
