Geared Stepper Motor
Created with Pixso.

Casun Nema 8 Gearbox Reduction ratio 16:1 Stepper Motor 0.2A For Beauty Equipment

name

Casun Nema 8 Gearbox Reduction ratio 16:1 Stepper Motor 0.2A For Beauty Equipment

Brand Name: Casun
Model Number: B20SHD4303-16G-2
MOQ: 1PC
Price: $23.66-$29
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
14mN.m
Current:
0.2A
Motor Length:
28mm
Shaft:
Round Shaft 15mm Length
Detent Torque:
2N.m
Voltage:
4.4V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Casun Nema 8

,

20mN.M Nema 8 Gearbox Stepper

,

Gearbox Stepper Motor 0.6A

Product Description
Casun Nema 8 Gearbox Reduction Ratio 16:1 Stepper Motor 0.2A for Beauty Equipment
14mN.m Casun Mini Nema 8 Gearbox Stepper Motor 0.2A Stepping Motor specifically designed for beauty equipment applications. Compact dimensions of 20x20x28mm make it ideal for medical and beauty equipment where space is limited.
Motor Specifications
Step Angle 1.8°
Frame Size 28 mm
Number of Phase 2 Phase
Rated Current 0.2 A
Holding Torque 14 mN.m
Resistance 22 ohm
Inductance 6 mH
Rotor Inertia 2 g-cm²
Motor Weight 0.1 kg
Number of Leads 4
Connection Bipolar
Product Visuals

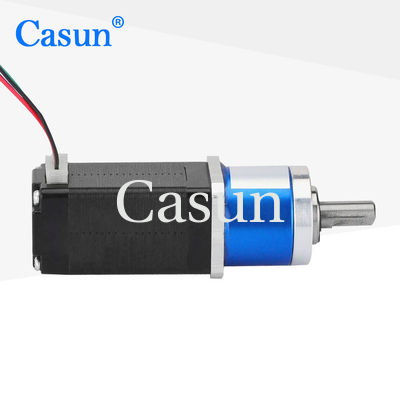

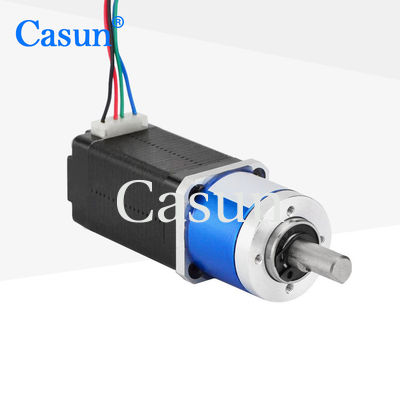

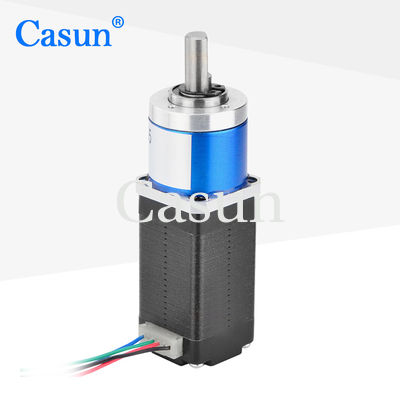

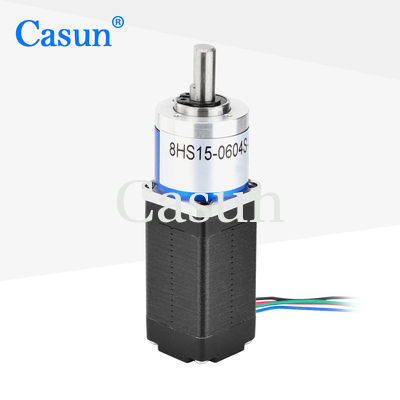

Casun Nema 8 Gearbox Reduction ratio 16:1 Stepper Motor 0.2A For Beauty Equipment 0 Casun Nema 8 Gearbox Reduction ratio 16:1 Stepper Motor 0.2A For Beauty Equipment 1
Customization Options
Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to:

  • Special shafts
  • Winding parameters
  • Installation dimensions
  • Lead wires with special requirements
  • Connectors
Encoder
Brake
Gearbox
Connector
Get a Quote
Company Information
  • Location: Based in Guangdong, China, established in 2011
  • Markets: Domestic Market (63%), Western Europe (12%), North America (9%), Eastern Asia (8%), Northern Europe (2%)
  • Team Size: 51-100 people in our office
  • Quality Assurance: Pre-production samples and final inspection before shipment
  • Specialization: Over 11 years experience in stepper motor production
  • Product Range: Stepper Motors, BLDC Motors
  • Payment & Delivery: FOB, CFR, CIF, EXW, Express Delivery; USD, CNY; T/T, L/C, D/P D/A, PayPal
  • Languages: English, Chinese, Japanese
