Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver

Casun MACH3 Breakout board CNC USB MACH3 4 axis interface driver motion controller driver board

MACH3 CNC GRBL controller, 4-axis board, motion board, touch probe, horizontal sensor, USB expansion card

1. Connect the 4-axis bracket to connect 4 stepper motors or servo motors;
2. The maximum stepping pulse frequency is 100kHz, applicable to servo or stepping motor;
3. Support automatic detection tools
4. Allow emergency access
5. Support limit switch
6. Connect the bracket of the electronic steering wheel
7. It is necessary to use 24V DC external power supply to isolate USB and external ports to make the system more stable.


8. It has an output port of 0-10V and can use MACH3 software to control the speed of shaft motor.
9. 4 Universal input, which can be connected with limit switch, stop switch, probe switch, reset and other devices
10. 4 Universal isolation relay drive output interface, which can drive the start, positive and negative rotation, pump and other devices of four relay control shafts
11. 1 Status LED, indicating the status of the connection on the board


Size: 8x7 7cm/3.15x3.03 inch



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Provide "multiple international certifications"

  • Established in China for 12 years and has served more than 800 customers.

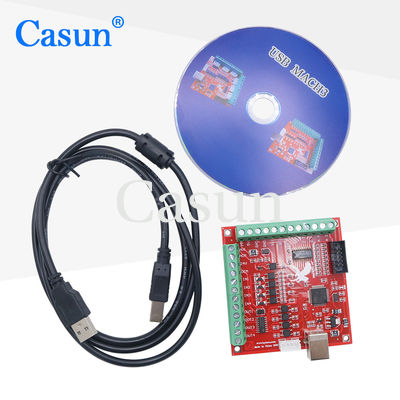

Appearance

Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver 0



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver 1 Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver 2 Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver 3 Casun MACH3 Breakout Board CNC USB MACH3 4 Axis Interface Driver 4
