Black 0.5A Micro Stepper Motor 2.55V Nema 8 Non Captive For STM CNC Milling Machine

Black 0.5A Micro Stepper Motor 2.55V Nema 8 Non Captive For STM CNC Milling Machine

Brand Name:	Casun
Model Number:	20SHD0302-83T1
MOQ:	1PC
Price:	$13-$13.5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.5Amp

Holding Torque:

15mN.m

Steper Angle:

1.8degree

Phase:

Detent Torque:

2mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

0.5A Micro Stepper Motor

Non Captive Micro Stepper Motor

Product Description

Black 0.5A Micro Stepper Motor 2.55V Nema 8 Non Captive For STM CNC Milling Machine

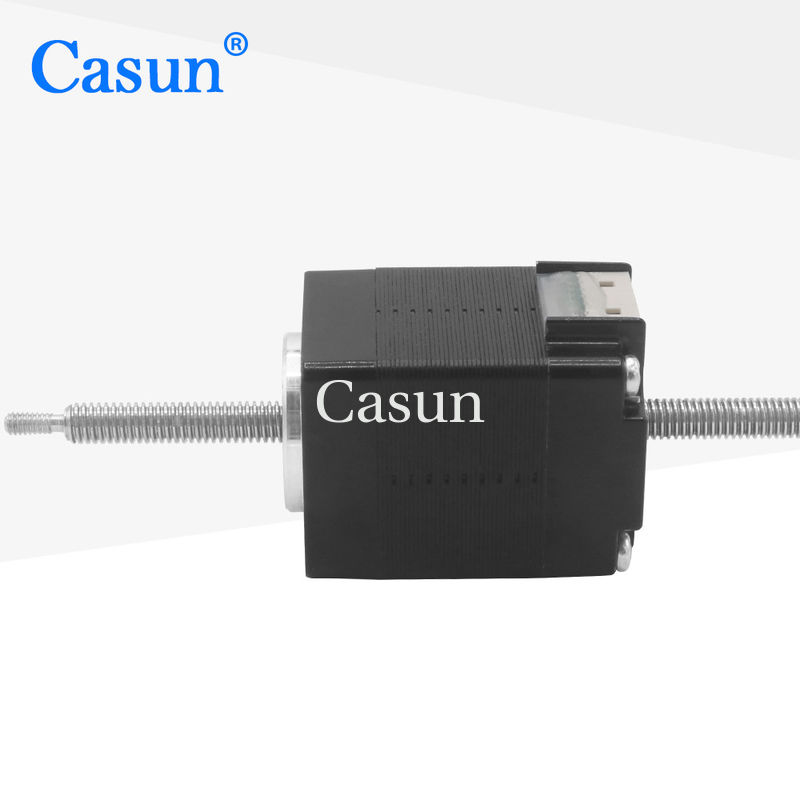

Nema8 Non Captive Stepper Motor Through Screw Motor 20mmx20mm Stepping Motor with Screw for STM CNC Milling Machine. The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5Amp
Holding Torque	15mN.m
Resistance	5.1ohm
Inductance	1.5mH
Rotor Inertia	2g-cm²
Motor Weight	0.08kg
Lead Screw	Tr3.35X0.6096
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft
