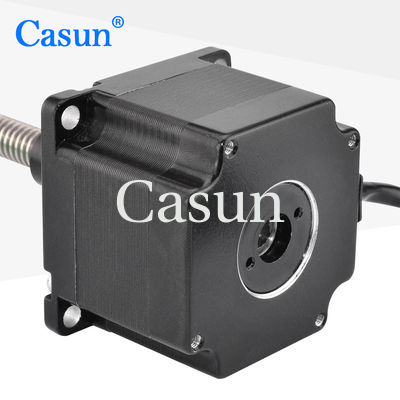

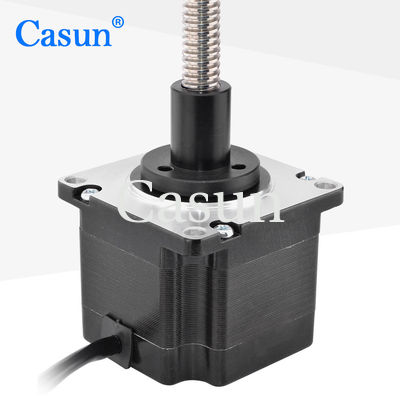

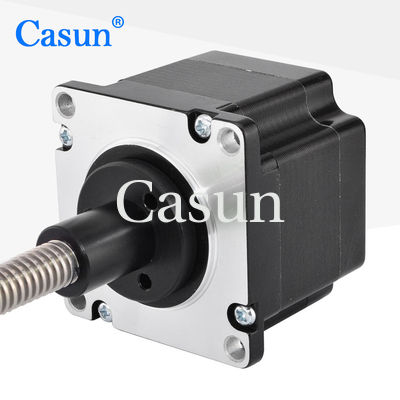

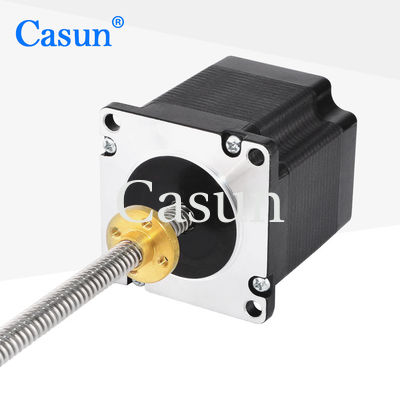

3A Linear Nema 23 Stepper Motor With 4 Lead Screw Captive 2 Phase

3A Linear Nema 23 Stepper Motor With 4 Lead Screw Captive 2 Phase

Brand Name:	Casun
Model Number:	57SHD4429-120NT
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

1260mN.m

Current:

Motor Length:

54mm

Shaft:

Screw Shaft 120mm Length

Phase:

Rated Voltage:

3.3V

Detent Torque:

40mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Linear Nema 23 Stepper Motor

Lead Screw Nema 23 Stepper Motor

Product Description

3A Linear Nema 23 Stepper Motor With 4 Lead Screw Captive 2 Phase

57×57mm 3A Casun Linear Nema 23 Stepper Motor with 4-Lead Screw Captive Stepper Motor

57×57×54mm NEMA 23 Captive Stepper Motor 3A 1.26N.m with CE certification. The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Engineering support available within 48 hours

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	3 A
Holding Torque	1260 mN.m
Resistance	1.1 ohm
Inductance	3 mH
Rotor Inertia	260 g-cm²
Motor Weight	0.75 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm, 54mm, 76mm, 83mm, 100mm	8mm	1mm	20-1000mm
	2mm, 4mm, 8mm, 9.53mm	1.5875mm, 3.175mm, 25.4mm
	10mm	2mm, 4mm, 10mm, 20mm
	12mm	4mm
	15mm	4mm, 8mm

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

3. What can you buy from us?

Stepper Motor, BLDC Motor

4. Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
