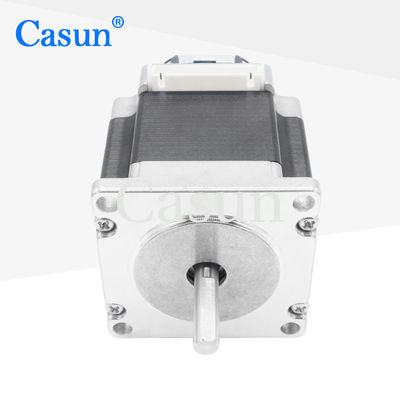

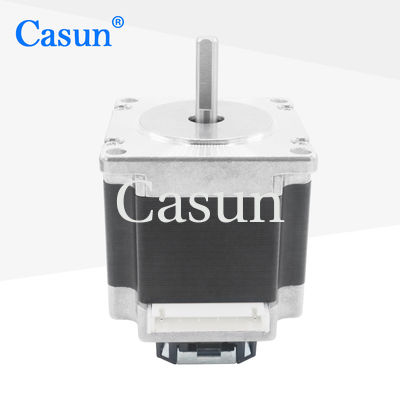

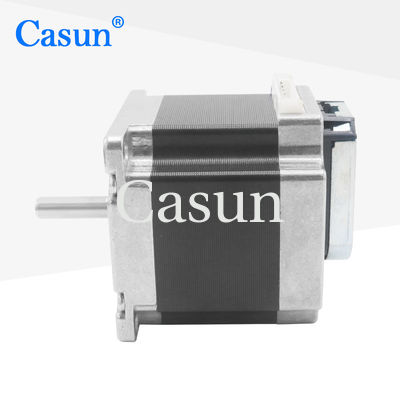

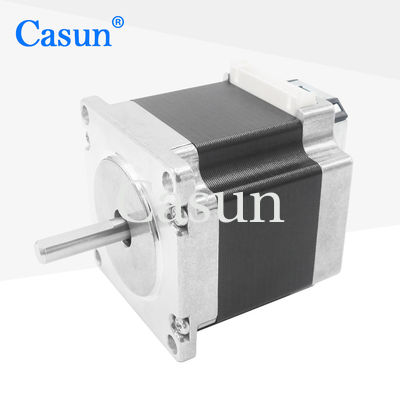

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS

name

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS

Brand Name: Casun
Model Number: 57SHD0408-25BQ
MOQ: 1PC
Price: $21.54-$24.94
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Color:
Black
Current / Phase:
2.5Amp
Holding Torque:
1.2N.m
Step Angle:
1.8degree
Phase:
2
Rated Voltage:
3V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

2.5A Nema 23 Closed Loop Motor

,

Shaft Nema 23 Closed Loop Motor

Product Description

57*57mm Casun Nema 23 2.5A Closed Loop Motor 25mm Shaft 3V Stepper Motor with ROHS



Nema23 57MMX57MM Hybrid Closed Loop Stepper Motor 1.2Nm 25mm Shaft 2.5A 3V DC for CNC SMT

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



2.5 Amp

Holding Torque



1.2N.m

Resistance



1.2hm

Inductance



4.2mH

Rotor Inertia



260g-cm²

Motor weight



0.6 kg

Encoder Pulsh



1000

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

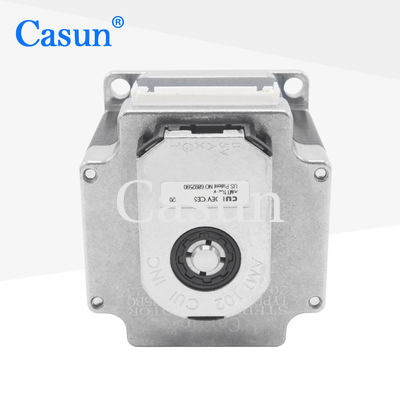

Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 1 57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 2 57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 3 57*57mm Casun Nema 23 Closed Loop Motor 2.5A 25mm Shaft 3V Stepper Motor ROHS 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2.5A Nema 23 Closed Loop Motor

Shaft Nema 23 Closed Loop Motor
