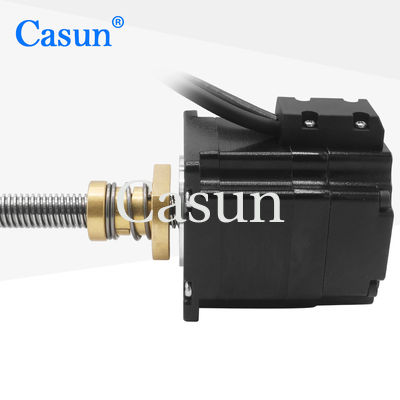

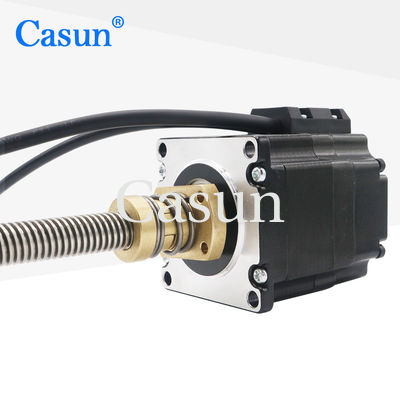

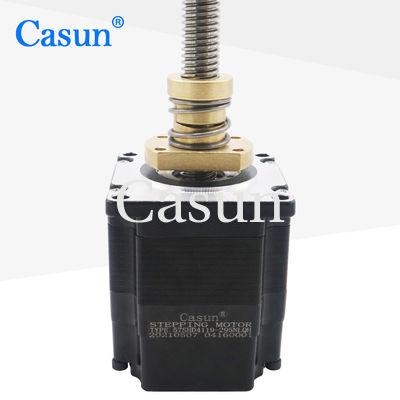

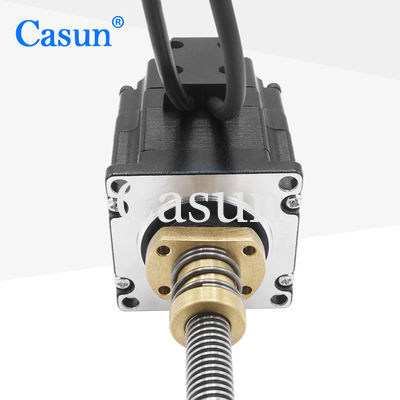

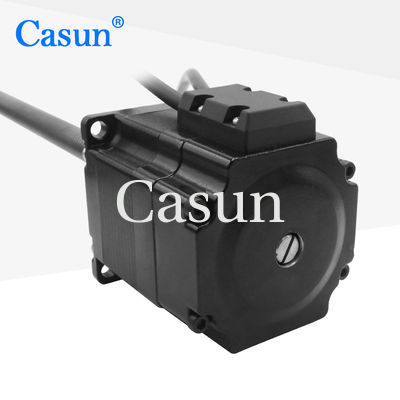

NEMA 23 Lead Screw Captive Stepper Motor With Encoder 2.0A

NEMA 23 Lead Screw Captive Stepper Motor With Encoder 2.0A

Brand Name:	Casun
Model Number:	57SHD4119-295NLQH
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

900mN.m

Current:

2.0A

Motor Length:

45mm

Shaft:

Screw Shaft 294.5mm Length

Phase:

Rated Voltage:

3.4V

Detent Torque:

25mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Lead Screw Captive Stepper Motor

NEMA 23 Captive Stepper Motor

Product Description

NEMA 23 Lead Screw Captive Stepper Motor With Encoder 2.0A

The 57mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque. To lessen vibration and produce a greater step resolution, use with a microstepping driver. Select a standard version or ask for a specially configured version.

Key Features

Available in bipolar or unipolar variants
Hybrid stepper building
Available in variations with a single or double shaft
With a 12-year history in China and more than 800 clients served
Within 48 hours, one of our engineers will contact you with the best option

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	900 mN.m
Resistance	1.7 ohm
Inductance	4.1 mH
Rotor Inertia	155 g-cm²
Motor Weight	0.6 kg
Number of Leads	4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm, 54mm, 76mm, 83mm, 100mm	8	1	20 ~ 1000mm
	2, 4, 8, 9.53	1.5875, 3.175, 25.4
	10	2, 4, 10, 20
	12	4
	15	4, 8

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

3. What can you buy from us?

Stepper Motor, BLDC Motor

4. Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
