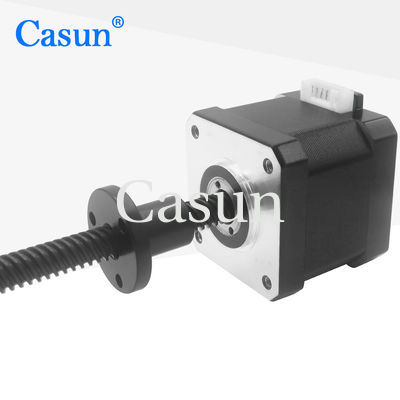

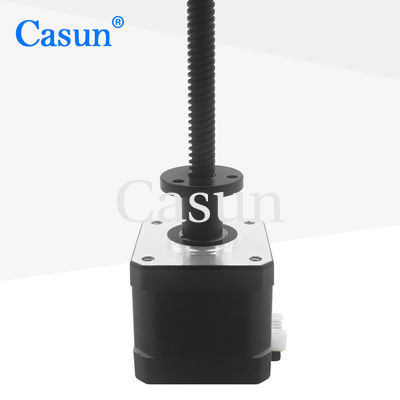

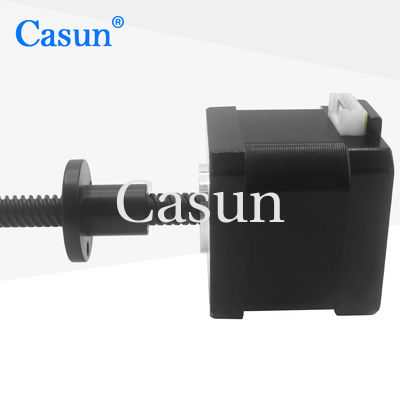

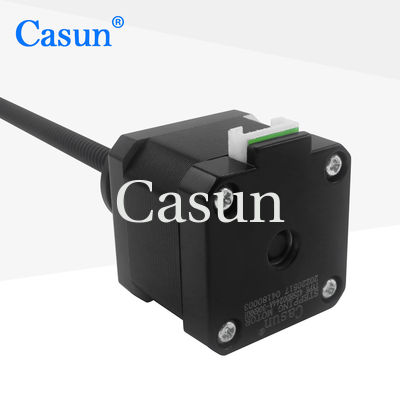

NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0244A-306NLH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

NEMA 17 Linear Stepper Motor

,

Lead Screw Linear Stepper Motor

Body:
40mm
Current:
2Amp
Holding Torque:
450mN.m
Lead:
Tr8*8
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
40mm
Current:
2Amp
Holding Torque:
450mN.m
Lead:
Tr8*8
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Compared to other types of stepper motors, externally driven screw stepper motors can have higher mechanical efficiency.

Suitable for Printers, engraving machines, 3D printers, and robots



Features:

  • Bipolar or unipolar versions available

  • Each model of our stepper motor is suitable for diverse applications

  • Available in single or double shaft versions

  • Having operated in China for 12 years, we have served over 800 customers

  • Professional research and development manufacturing

Dimensions

NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



2Amp

Holding Torque



450 mN.m

Resistance



1.1 ohm

Inductance



2.6 mH

Rotor Inertia



57g-cm²

Motor weight



0.3kg

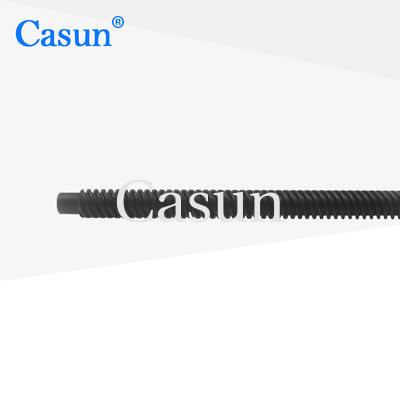

Lead Screw



Tr8X4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A







Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 1 NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 2 NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 3 NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 4





Please click the "Get  a quote" button below to tell us your requirements.

NEMA 17 Linear Stepper Motor Thread Rod Micro Actuator Lead Screw Tr8 External Linear 5
