GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Close Loop Stepper Motor > NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

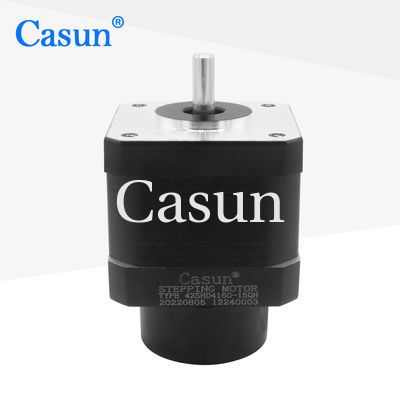

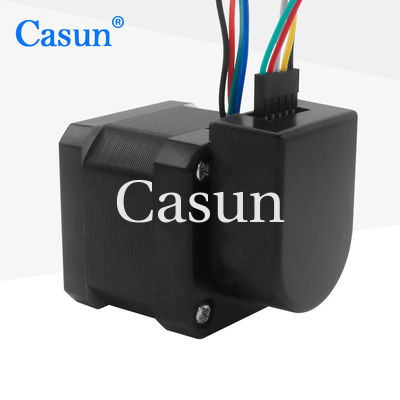

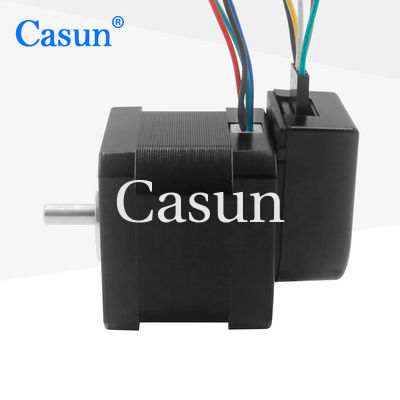

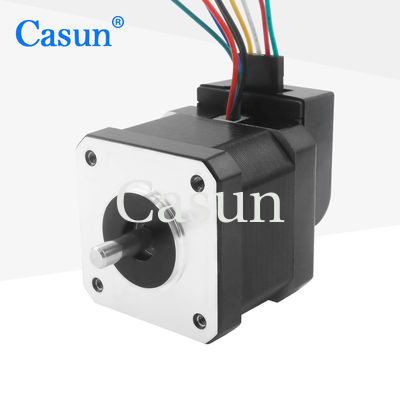

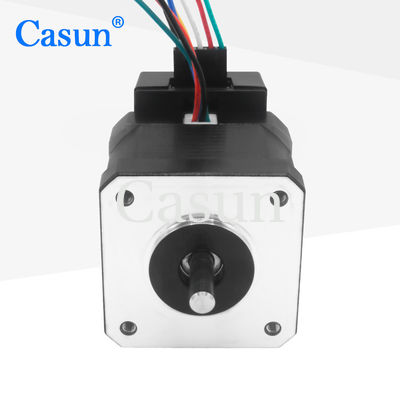

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4160-15QH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 17 Closed Loop Stepper Motor

,

Closed Loop Stepper Motor With Encoder

Step Angel:
1.8°
Holding Torque:
380mN.m
Current:
1.5A
Motor Length:
60mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
380mN.m
Current:
1.5A
Motor Length:
60mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun Stepping Motor NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

【42SHD4160】NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 1.5A for CNC Set with CE ISO



The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Our engineers will be in touch within 48 hours to provide the best solution

Appearance

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 0

Dimensions

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

380 mN.m

Resistance

1.6 ohm

Inductance

2.5 mH

Rotor Inertia

54 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 2 NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 3 NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 4 NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 5



Please click the "Get a quote" button below to tell us your requirements.
