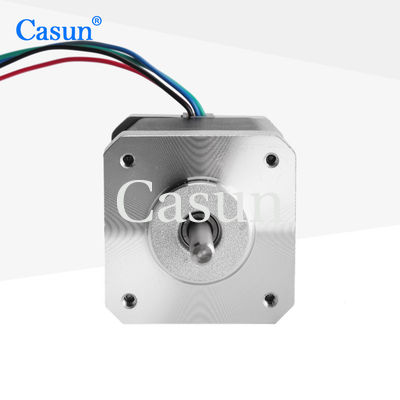

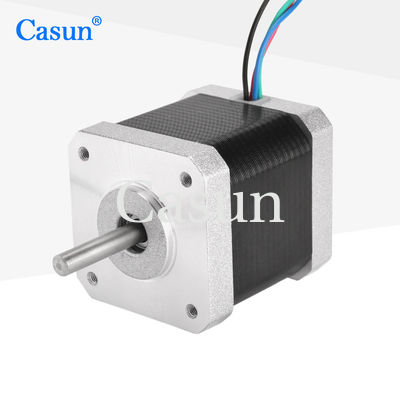

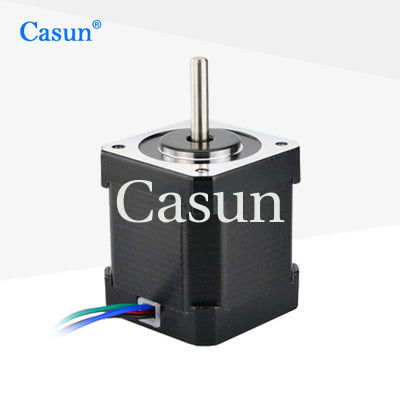

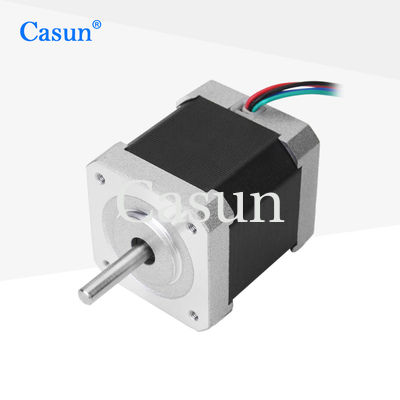

NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer

name

NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer

Brand Name: Casun
Model Number: 42SHD4438-24H
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A,T/T,L/C,D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
4.2kg.cm
Current:
1.68A
Motor Length:
48mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 17 Hybrid Stepper Motor

,

Hybrid Stepper Motor For 3D Printer

,

1.68A Hybrid Stepper Motor

Product Description
NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer
Product Overview

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

The NEMA 17 hybrid stepper motor features a 42x42x48mm body size and a 1.8° step angle, providing high precision and smooth motion control. Designed for reliability and versatility in 3D printers, CNC machines, and automation projects.

  • The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
  • Use with a microstepping driver to reduce vibration and achieve higher step resolution.
  • Choose a baseline version or request your own customized configuration.
Key Specifications
  • Model: NEMA 17 Hybrid Stepper Motor
  • Body Size: 42x42x48mm
  • Step Angle: 1.8°
  • Rated Current: 1.68A/phase
  • Holding Torque: 4.2kg.Cm
  • Wiring: 4-lead with 1m cable & 2.54mm pitch connector
  • Type: Bipolar stepper motor
Applications
  • 3D printers (replacement & upgrades)
  • Desktop CNC routers and milling machines
  • Laser engravers
  • Robotics and automation systems
Features
  • Bipolar or unipolar versions available
  • Accept contract manufacturing
  • Available in single or double shaft versions
  • Established in China for 12 years with over 800 customers served
  • Professional research and development manufacturing
Appearance
NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 0
Dimensions
NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 1
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.68 A
Holding Torque4.2kg.cm
Resistance1.65 ohm
Inductance37 mH
Rotor Inertia72 g-cm²
Motor weight0.38 kg
Number of leads4
ConnectionBipolar
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Submodels
ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A
Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Why Choose This NEMA 17 Stepper Motor?

Provides stable torque, precise motion control, and strong compatibility with popular 3D printer and CNC controller boards.

Installation & Compatibility

Standard NEMA 17 mounting dimensions ensure easy installation and broad compatibility across a wide range of machines and DIY projects.

Related Products
  • NEMA 17 High Torque Stepper Motor 48mm
  • NEMA 23 Industrial Stepper Motor
  • Stepper Motor Drivers (A4988, TMC2209, DM542)
Options
NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 2 NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 3 NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 4 NEMA 17 Hybrid Stepper Motor 42x42x48mm / 1.68A 4.2kg.Cm Bipolar Stepper for 3D Printer 5

Please click the "Get a quote" button below to tell us your requirements.
