Linear Nema 14 Non Captive Stepper Motor Lead Screw Tr6.35 35mm For Automation Equipment

Linear Nema 14 Non Captive Stepper Motor Lead Screw Tr6.35 35mm For Automation Equipment

Brand Name:	Casun
Model Number:	P35SHD4150-257T4
MOQ:	1PC
Price:	$9.68-$16
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nema 14 Non Captive Stepper Motor

Non Captive Stepper Motor Lead Screw

Product Description

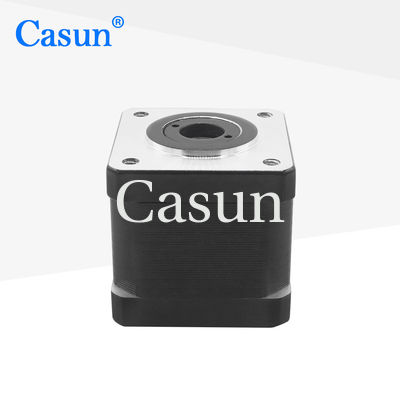

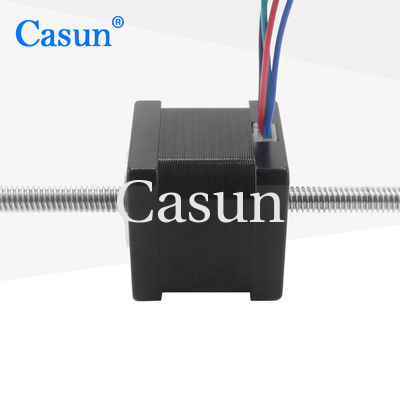

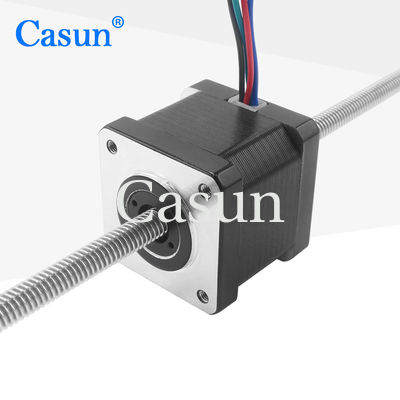

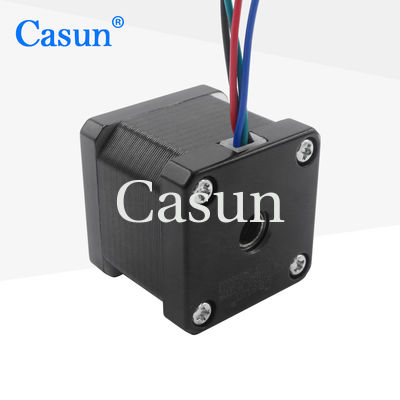

Casun Linear Step Motor Nema 14 Non Captive Lead Screw Stepper Motor 35x35x34mm Tr6.35 35mm for automation equipment

Nema 14 Non Captive Stepper Motor 34mm Tr6.35 Lead Screw Stepping 35mm Linear Step Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0A
Holding Torque	190 mN.m
Resistance	3.5 hm
Inductance	3.6 mH
Rotor Inertia	20 g-cm²
Motor weight	0.18 kg

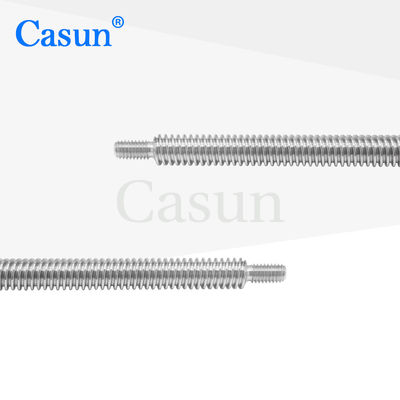

Lead Screw	Tr6.35X2.4384
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307-20	80mN.m	1.8°	20mm	Round Shaft 20mm	0.4A
35SHD0001-20	100mN.m	1.8°	26mm	Round Shaft 20mm	0.4A
35SHD0102-20B	150mN.m	1.8°	34mm	D Shaft-20mm	0.75A
35SHD0801-20B	280mN.m	1.8°	40mm	D Shaft-20mm	0.5A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 26 mm 34 mm 40 mm 50 mm	5	2	20-1000 mm
		4
	5.56	9.7536
	6.35	6.35

	6.5	3

	8	2

	M5	1.6

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
