Home > products > Lead Screw Stepper Motor > External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor

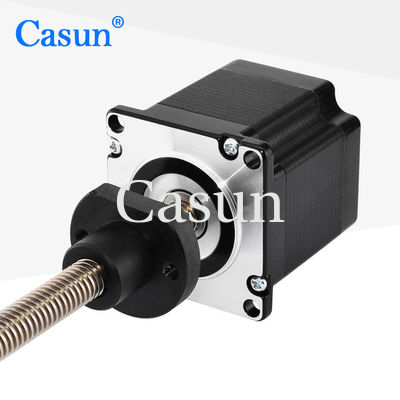

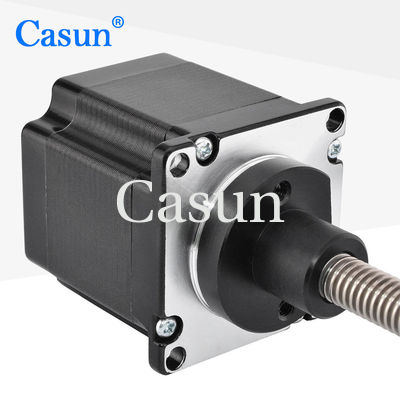

External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor
External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor
External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor
External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor

External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD0408-160NT

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.68-$14

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

External Lead Srew Stepper Motor

,

Lead Srew Stepper Motor NEMA 23

,

Lead Srew Stepper Motor 2.8A

Step Angel:
1.8°
Holding Torque:
1000mN.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Screw Shaft 81mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1000mN.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Screw Shaft 81mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description



Casun External Lead Screw Stepper Motor NEMA 23 2.8A 1N.M Stepper Motor Captive Stepper Motor

NEMA 23 Captive Stepper Motor 57X57X54mm 2.8A 1.0N.m with CE


The 57mm Hybrid Stepper Motor Series provides high holding torque in a range of sizes.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Our engineers will be in touch within 48 hours to provide the best solution

Dimensions

External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor 0

















Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1000 mN.m

Resistance

1.2 ohm

Inductance

4.2 mH

Rotor Inertia

260 g-cm²

Motor weight

0.8 kg

Number of leads

4

Connection

Bipolar


Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Submodels



Body Length



 Diameter of Screw Pitch Length of Screw

41mm



54mm



76mm



83mm



100mm

 8 1 20 ~ 1000m
2
4
8
9.53 1.5875
3.175
25.4
10 2
4
10
20
12 4
15 4
8





Download

If our basic motor does not satisfy your requirements, we may customise the motor to meet your specifications.


unique shafts, winding parameters, installation measurements, lead wires with unique needs, connections, and so forth are examples of customised content.

Options:

Encoder

Brake

Gearbox

Shaft
External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor 1 External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor 2 External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor 3 External Lead Srew Stepper Motor NEMA 23 2.8A 1N.M Captive Stepping Motor 4



Please click the "Get a quote" button below to tell us your requirements.
