Home > products > Lead Screw Stepper Motor > NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation

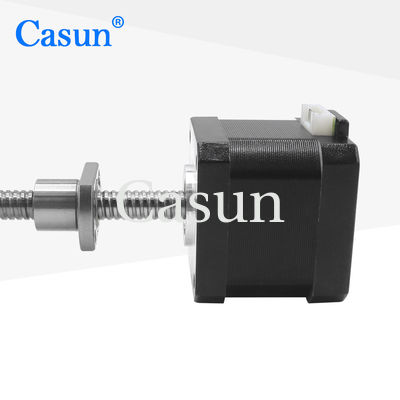

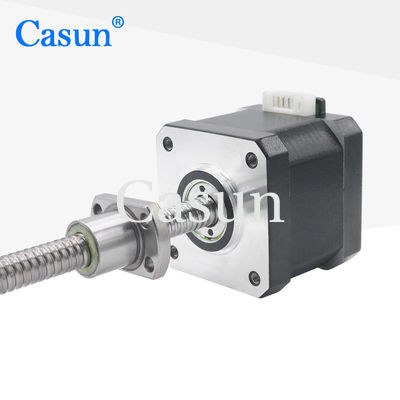

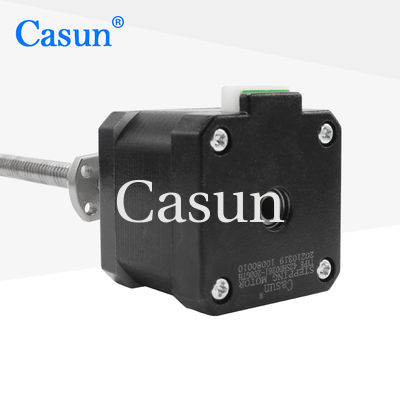

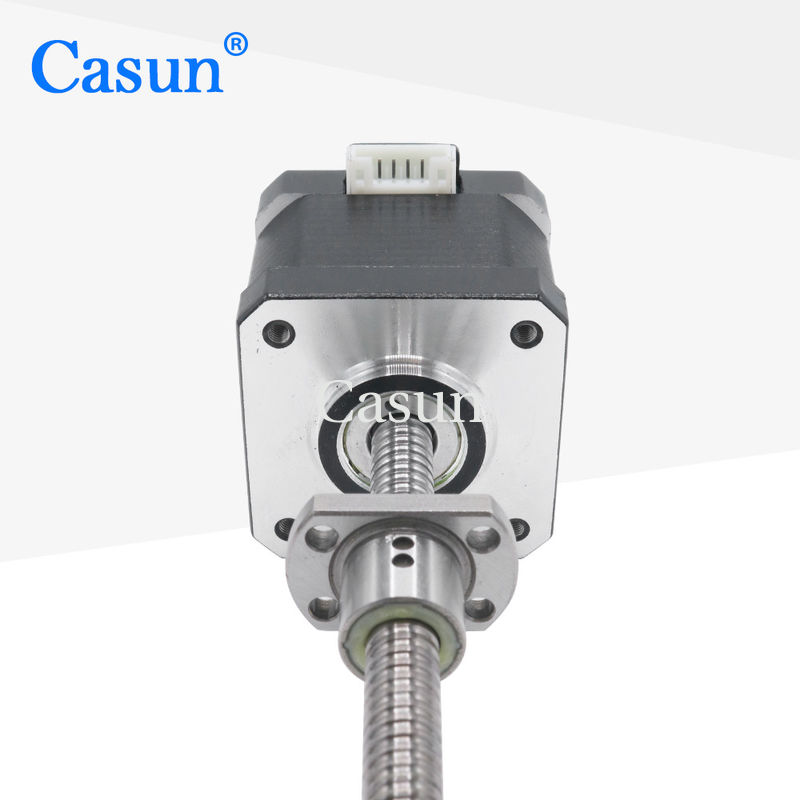

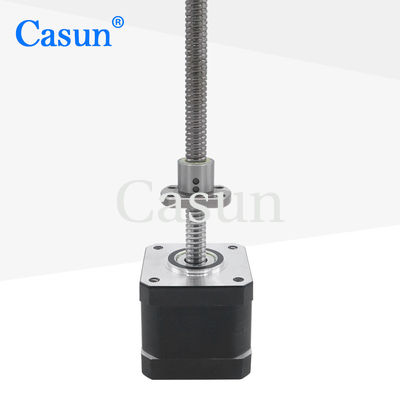

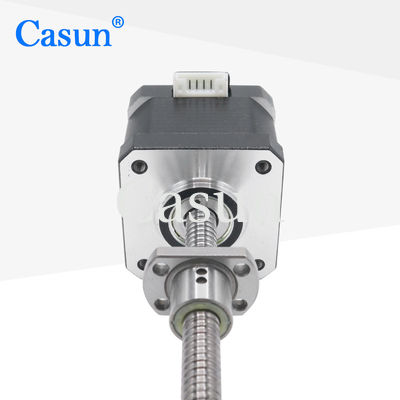

NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation
NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation

NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0261-200GTH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Linear Stepper Motor Lead Screw

,

NEMA 17 Stepper Motor Lead Screw

Body:
40mm
Current:
1.68 Amp
Holding Torque:
450mN.m
Shaft:
Ball Screw Shaft 200mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
40mm
Current:
1.68 Amp
Holding Torque:
450mN.m
Shaft:
Ball Screw Shaft 200mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The ball screw has lower frictional resistance and higher efficiency, allowing the stepper motor to operate at higher speeds.

Ball guided structure can provide smooth motion and low friction loss.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • CE and RoHS approved

  • Your purchase is backed by a ten-year warranty, ensuring complete confidence

Dimensions

NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 0

















Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68 Amp

Holding Torque



450 mN.m

Resistance



1.95 ohm

Inductance



4.4 mH

Rotor Inertia



57g-cm²

Motor weight



0.3 kg

Lead Screw



Tr8X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A







Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 1 NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 2 NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 3 NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 4





Please click the "Get  a quote" button below to tell us your requirements.



NEMA 17 Linear Stepper Motor Lead Screw Tr8*2 40mm Body 0.45N.M For Industrial Automation 5
