Home > products > Lead Screw Stepper Motor > 28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

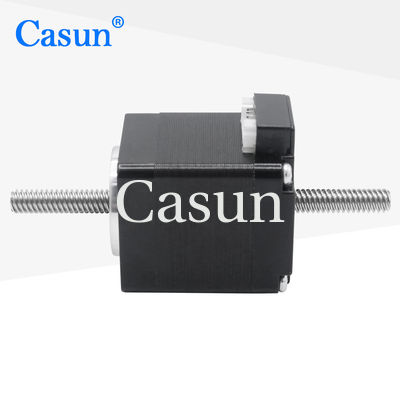

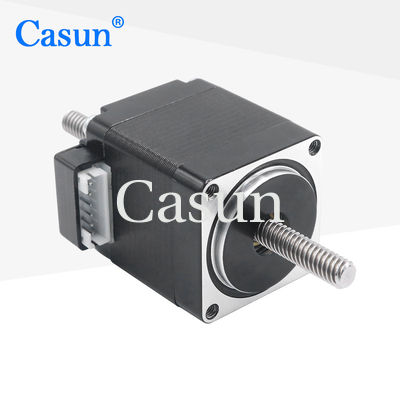

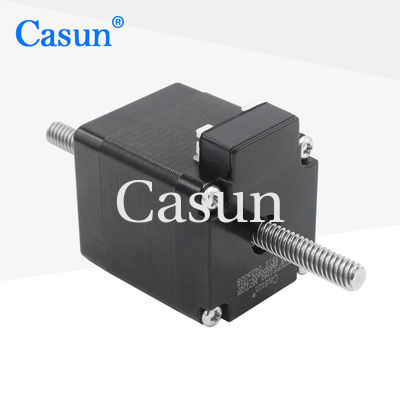

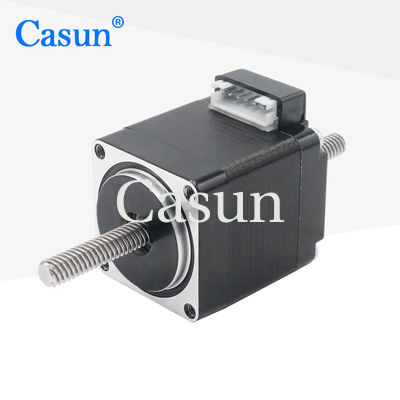

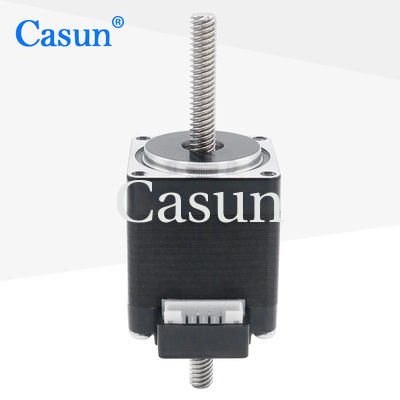

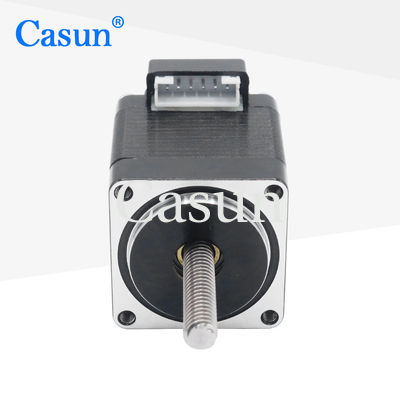

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment
28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD0202-75TL

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.94-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 11 Linear Stepper Motor

,

Linear Stepper Motor 0.67A

Body:
33mm
Current:
0.67Amp
Holding Torque:
50mN.m
Voltage:
3.75 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
33mm
Current:
0.67Amp
Holding Torque:
50mN.m
Voltage:
3.75 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The linear screw stepper motor has the characteristic of strong programmability, and its motion state and parameters can be controlled through programming.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.



Features:

  • Bipolar or unipolar versions available

  • Professional research, development, and manufacturing

  • With 12 years of operations in China, we have successfully served more than 800 customers

  • Specializing in delivering personalized services is our area of expertise

  • Customizations on request





Motor Specifications



Step Angel



 1.8 °

Fram Size



 28mm

Number of Phase



 2 Phase

Rated Current



 0.67Amp

Holding Torque



 50 mN.m

Resistance



 5.6 ohm

Inductance



 3.9mH

Rotor Inertia



 9g-cm²

Motor weight



 0.12kg

Lead Screw



 Tr5X4

Connection



Bipolar

Dimensions

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 0




















Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels






Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 1 28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 2 28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 3 28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
