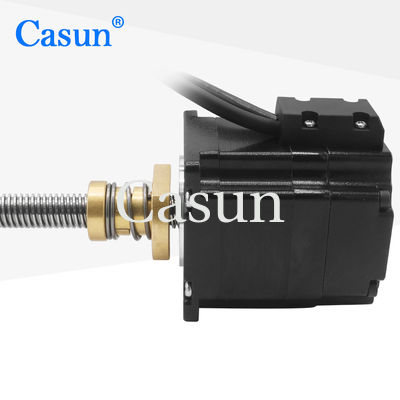

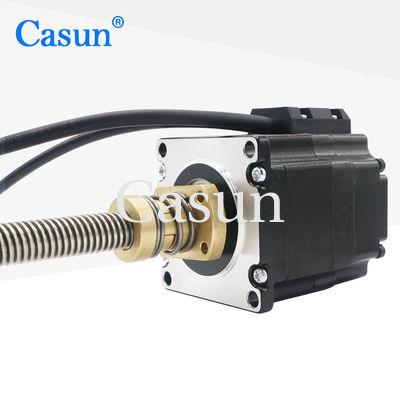

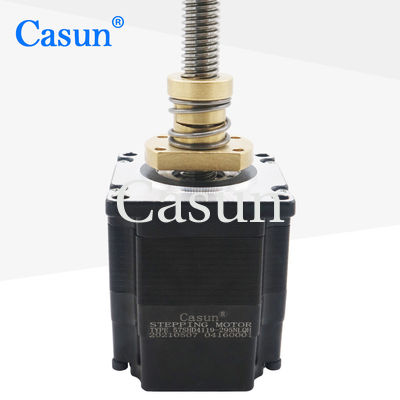

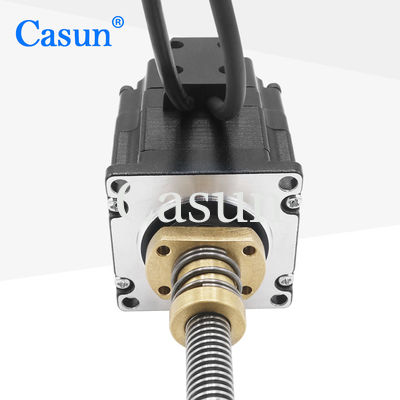

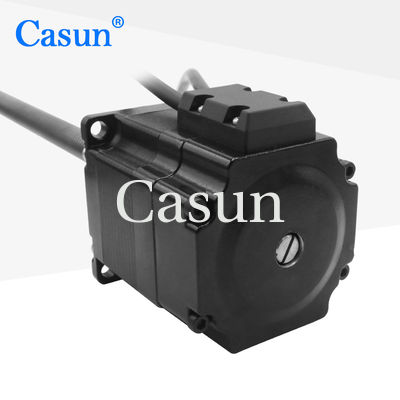

1.8 Degree 2 Phase NEMA 23 Linear Stepper Motor With Encoder 575745mm 0.9N.M 4 Wires

1.8 Degree 2 Phase NEMA 23 Linear Stepper Motor With Encoder 575745mm 0.9N.M 4 Wires

Brand Name:	Casun
Model Number:	57SHD4119-295NLQH
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

900mN.m

Current:

2.0A

Motor Length:

45mm

Shaft:

Screw Shaft 294.5mm Length

Phase:

Rated Voltage:

3.4V

Detent Torque:

25mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

1.8 Degree Linear Stepper Motor

2 Phase Linear Stepper Motor

Product Description

1.8 Degree 2 Phase NEMA 23 Linear Stepper Motor With Encoder 57×57×45mm 0.9N.M 4 Wires

The encoder can detect the movement direction of the motor, including forward and reverse movements, and communicate with the control system. The combination of linear screws and encoders makes the position control of NEMA 23 motors more precise.

Features

Bipolar or unipolar versions available
Accept contract manufacturing
Available in single or double shaft versions
Each stepper motor model is adaptable to various scenarios
We provide customized services and welcome contract manufacturing. Seeking dealers!

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	900 mN.m
Resistance	1.7 ohm
Inductance	4.1 mH
Rotor Inertia	155 g-cm²
Motor Weight	0.6 kg
Number of Leads	4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Shaft Radial Play: 0.02Max. (450g-load)
Shaft Axial Play: 0.08Max. (450g-load)
Max. radial force: 28N (20mm from the flange)
Max. axial force: 10N

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
41mm, 54mm, 76mm, 83mm, 100mm	8	1	20 ~ 1000mm
	2, 4, 8, 9.53	1.5875, 3.175, 25.4
	10	2, 4, 10, 20
	12	4
	15	4, 8

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2011, selling to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

3. What can you buy from us?

Stepper Motor, BLDC Motor

4. Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese

Available Options

Encoder

Brake

Gearbox

Shaft

Get a quote

Please click the "Get a quote" button above to tell us your requirements.
