Casun Linear 42x42mm Tr8x8 Hybrid Stepper Motor For CNC Milling Machine

Casun Linear 42x42mm Tr8x8 Hybrid Stepper Motor For CNC Milling Machine

Brand Name:	Casun
Model Number:	42shd4217-100nkl1
MOQ:	1PC
Price:	$12-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

1.5Amp

Holding Torque:

400mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Casun Linear Hybrid Stepper Motor

42x42mm Hybrid Stepper Motor

Product Description

Casun Linear 42x42mm Tr8x8 Hybrid Stepper Motor For CNC Milling Machine

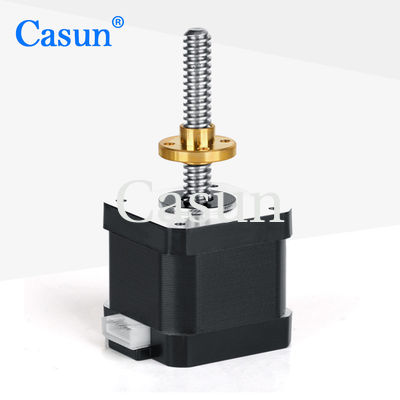

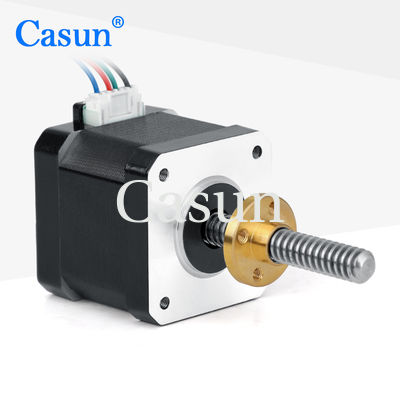

Casun linear stepper motor 42x42mm tr8x8 hybrid stepper motor for CNC Milling Machine. The Nema17 stepper motor with a 42mm x 42mm frame size and a captive linear screw is another option for CNC milling machines and other precision motion control applications where linear motion is required. This motor features a captive screw that moves linearly, providing precise and accurate positioning.

Like other motors in the 42mm Hybrid Stepper Motor Series, this motor offers powerful holding torque and can be used with a microstepping driver to reduce vibration and achieve higher step resolution. The series comes in a variety of sizes and can be customized to meet your specific requirements.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2Amp
Holding Torque	260mN.m
Resistance	2.5ohm
Inductance	3.3mH
Rotor Inertia	38g-cm²
Motor Weight	0.2kg
Lead Screw	Tr6.35X1
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Options

If our standard motor options do not meet your specific requirements, we can offer customized solutions to meet your needs. Our customization options include, but are not limited to:

Special shafts: We can customize the shaft diameter, length, shape, and material to meet your needs.
Winding parameters: We can customize the winding parameters such as the number of poles, wire gauge, and winding pattern to meet your specific requirements.
Installation dimensions: We can modify the motor's installation dimensions to fit your application's space constraints.
Lead wires with special requirements: We can customize the length, type, and number of lead wires to meet your specific needs.
Connectors: We can add or modify the connectors on the motor to match your application's requirements.

We have a team of experienced engineers who can work with you to develop a customized solution that meets your specific needs and requirements. Please feel free to contact us to discuss your customization needs.
