Casun Nema11 Nme14 External Linear Stepper Motor TR5X2 Hybrid Captive Stepper Motor For Beauty Equipment

Casun Nema11 Nme14 External Linear Stepper Motor TR5X2 Hybrid Captive Stepper Motor For Beauty Equipment

Brand Name:	Casun
Model Number:	28SHD4209-76NT
MOQ:	1PC
Price:	$9-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.5Amp

Holding Torque:

90mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nme14 External Linear Stepper Motor

Casun Nema11 Linear Stepper Motor

Product Description

Casun Nema11 Nme14 External Linear Stepper Motor TR5X2 Hybrid Captive Stepper Motor For Beauty Equipment

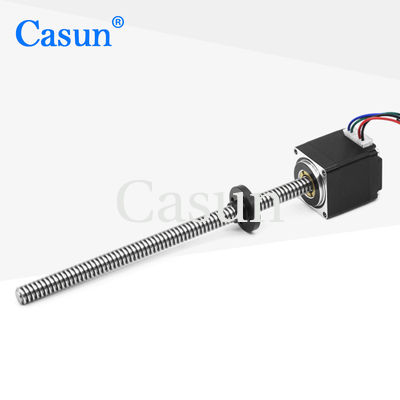

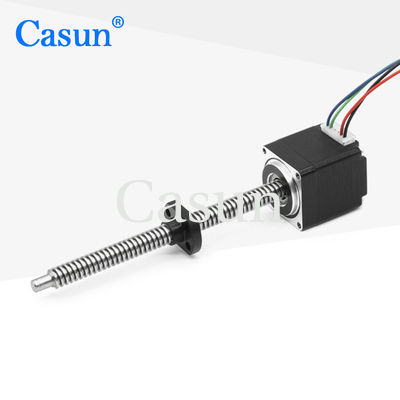

The Nema11 stepper motor with a 28mm x 28mm frame size and captive linear screw is designed for beauty machines and other precision motion control applications requiring linear motion. This motor features a captive screw that moves linearly, providing precise and accurate positioning.

Like other motors in the 28mm Hybrid Stepper Motor Series, this motor offers powerful holding torque and can be used with a microstepping driver to reduce vibration and achieve higher step resolution. The series comes in various sizes and can be customized to meet specific requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.5Amp
Holding Torque	90mN.m
Resistance	- ohm
Inductance	- mH
Rotor Inertia	- g-cm²
Motor Weight	0.12kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

If our standard motor options do not meet your specific requirements, we can offer customized solutions to meet your needs. Our customization options include, but are not limited to:

Special shafts: Custom shaft diameter, length, shape, and material
Winding parameters: Custom number of poles, wire gauge, and winding pattern
Installation dimensions: Modified motor installation dimensions
Lead wires with special requirements: Custom length, type, and number
Connectors: Added or modified connectors to match application requirements

Our experienced engineering team can work with you to develop customized solutions that meet your specific needs and requirements.

Get a Quote
