Home > products > Lead Screw Stepper Motor > Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor

Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4303-76NT

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9-$18

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

Nema11 Lead Screw Stepper Motor

,

Nme14 Lead Screw Stepper Motor

Color:
Black
Current:
0.24Amp
Holding Torque:
13mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.24Amp
Holding Torque:
13mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor

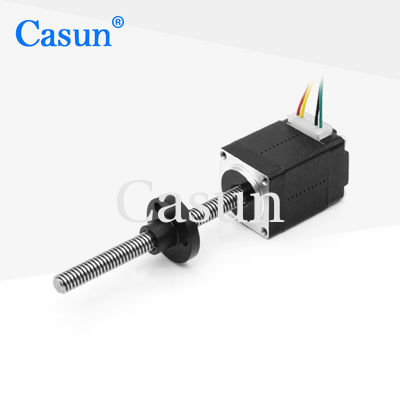

The Nema 8 stepper motor with a 20mm x 20mm frame size and a captive linear screw is another option for Beauty machines and other precision motion control applications where linear motion is required. This motor features a captive screw that moves linearly, providing precise and accurate positioning.


Like other motors in the 20mm Hybrid Stepper Motor Series, this motor offers powerful holding torque and can be used with a microstepping driver to reduce vibration and achieve higher step resolution. The series comes in a variety of sizes and can be customized to meet your specific requirements.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.24Amp

Holding Torque



13mN.m

Resistance



-ohm

Inductance



-mH

Rotor Inertia



-g-cm²

Motor weight



0.06kg

Lead Screw



Tr5X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor options do not meet your specific requirements, we can offer customized solutions to meet your needs. Our customization options include, but are not limited to:

- Special shafts: We can customize the shaft diameter, length, shape, and material to meet your needs.

- Winding parameters: We can customize the winding parameters such as the number of poles, wire gauge, and winding pattern to meet your specific requirements.

- Installation dimensions: We can modify the motor's installation dimensions to fit your application's space constraints.

- Lead wires with special requirements: We can customize the length, type, and number of lead wires to meet your specific needs.

- Connectors: We can add or modify the connectors on the motor to match your application's requirements.

We have a team of experienced engineers who can work with you to develop a customized solution that meets your specific needs and requirements. Please feel free to contact us to discuss your customization needs.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor 1 Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor 2 Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor 3 Casun Nema8 Nema11 Nme14 Hybrid Lead Screw Stepper Motor Tr5x2 Captive Screw Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
