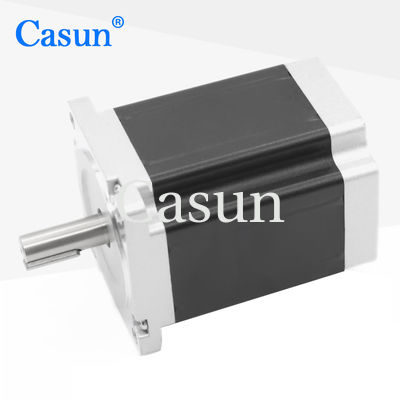

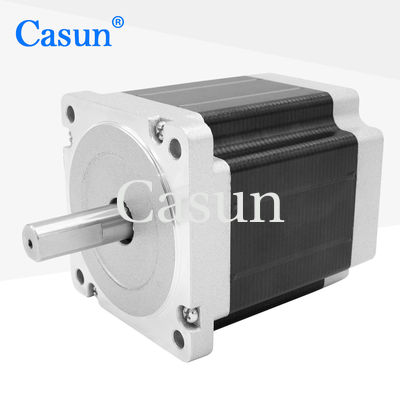

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

name

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Brand Name: Casun
Model Number: 86SHD4505-37
MOQ: 1PC
Price: $43-$48
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
12N.m
Current:
5.5A
Motor Length:
149mm
Shaft:
37mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

5.5A NEMA 34 Stepper Motor

,

NEMA 34 Stepper Motor For Engraving Machine

Product Description

Nema34 Stepper Motor 86x86mm 112mm 5.5A 12N.m 5kg Motor High Precision Motor for CNC Engraving Machine



Motor Specifications



Step Angel



1.8 °

Fram Size



86mm

Number of Phase



2 Phase

Rated Current



5.5A

Holding Torque



12N.m

Resistance



1.1ohm

Inductance



8mH

Rotor Inertia



3600g-cm²

Motor weight



5 kg

Number of leads



4

Connection



Bipolar





Appearance

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine 0

Dimensions

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
