External Lead Screw Step Motor Nema8 Hybrid Non Captive Stepper Motor Tr3.5*4 P1

External Lead Screw Step Motor Nema8 Hybrid Non Captive Stepper Motor Tr3.5*4 P1

Brand Name:	Casun
Model Number:	28SHD4351-01TL
MOQ:	1PC
Price:	$8.99-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.5Amp

Holding Torque:

14mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

External Lead Screw Step Motor

Nema8 Hybrid Lead Screw Step Motor

Product Description

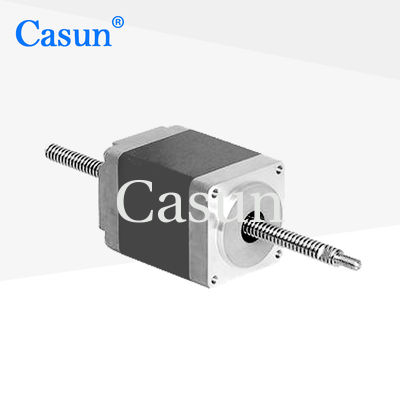

External Lead Screw Step Motor Nema8 Hybrid Non Captive Stepper Motor Tr3.5*4 P1

Casun NEMA8 hybrid non-captive stepper motor TR3.5*4(P1) external lead screw step motor

The NEMA 8 stepper motor is a small-sized stepper motor commonly used in applications requiring precise motion control in compact spaces. It features a 20mm x 20mm flange size and low torque rating, making it ideal for applications requiring low power and high precision.

This motor provides precise linear motion, making it suitable for miniature linear actuators, precision positioning systems, and mini CNC machines. The lead screw converts rotary motion into linear motion, delivering precise and repeatable linear positioning.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.5 Amp
Holding Torque	14 mN.m
Resistance	- ohm
Inductance	- mH
Rotor Inertia	- g-cm²
Motor Weight	0.06 kg
Lead Screw	Tr3.5X4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor options don't meet your requirements, we offer customized solutions including:

Special shafts: Custom diameter, length, shape, and material
Winding parameters: Custom poles, wire gauge, and winding patterns
Installation dimensions: Modified to fit your space constraints
Lead wires: Custom length, type, and number of wires
Connectors: Added or modified to match your requirements

Our experienced engineering team can develop customized solutions to meet your specific needs.
