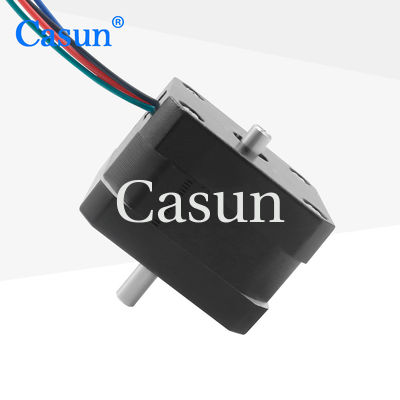

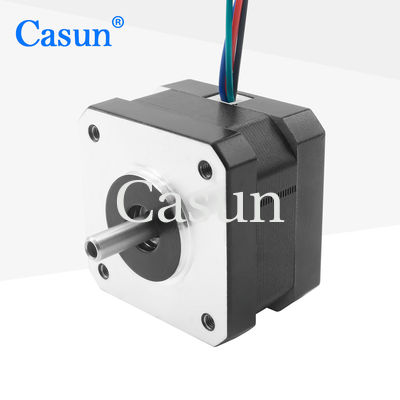

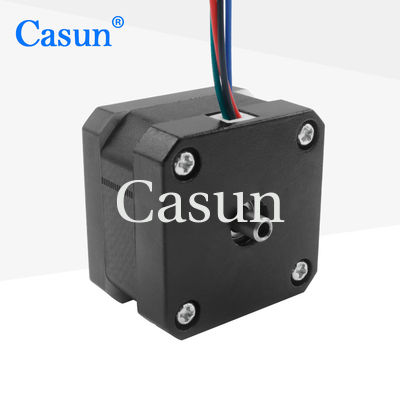

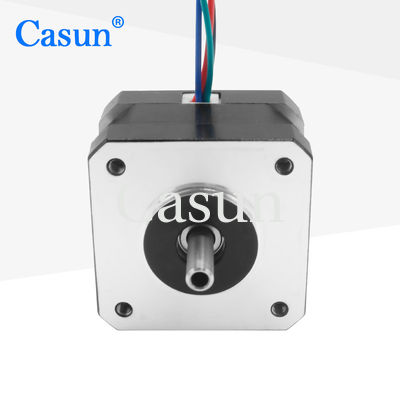

42SHB4202 NEMA 17 Stepper Motor 2 Phase 0.9 Degrees 0.8A 0.13N.M 4 Wire For Smart Equipment

42SHB4202 NEMA 17 Stepper Motor 2 Phase 0.9 Degrees 0.8A 0.13N.M 4 Wire For Smart Equipment

Brand Name:	Casun
Model Number:	42SHB4202-15S
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

130mN.m

Current:

0.8A

Motor Length:

60mm

Shaft:

Dual Shaft 15mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

42SHB4202 NEMA 17 Stepper Motor

2 Phase NEMA 17 Stepper Motor

0.13N.M NEMA 17 Stepper Motor

Product Description

42SHB4202 NEMA 17 Stepper Motor 2 Phase 0.9 Degrees 0.8A 0.13N.M 4 Wire For Smart Equipment

The 42mm Hybrid Stepper Motor Series has high torque output and low vibration. Suitable for printers, engraving machines, 3D printers, and robots.

Key Features

Ten-year warranty and secure shopping
Versatile applications across various situations
Available in single or double shaft versions
Recognized contract manufacturing
Over 800 clients served during 12 years of operation in China

Motor Specifications

Step Angle	0.9°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	130 mN.m
Resistance	7.2 ohm
Inductance	7.0 mH
Rotor Inertia	24 g-cm²
Motor Weight	0.18 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
