Home > products > Lead Screw Stepper Motor > 1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing

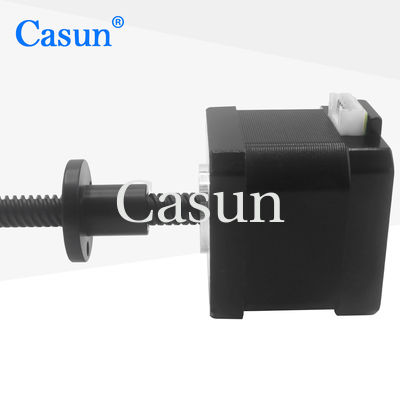

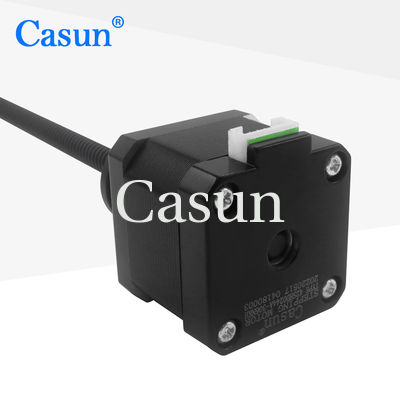

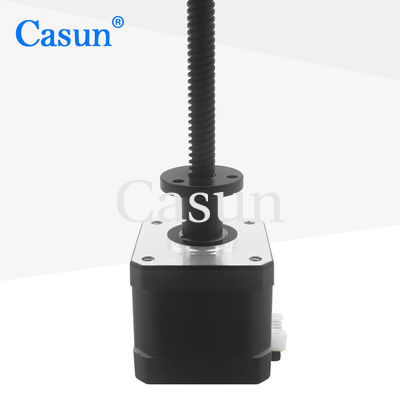

1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing
1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing
1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing
1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing
1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing
1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing

1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0244A-306NLH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 Degree NEMA 17 Stepper Motor

,

40mm NEMA 17 Stepper Motor

Current:
2.0A
Holding Torque:
450mN.m
Axial Length:
306mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
2.0A
Holding Torque:
450mN.m
Axial Length:
306mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm body 2.0A for Mechanical Processing

The NEMA 17 screw stepper motor has good self-locking characteristics, that is, it can maintain the current position after stopping the drive signal input.

Mechanical processing, Robotics technology, Automation equipment.



Features:

  • Our services are customizable and we welcome contract manufacturing

  • Dealers wanted!

  • With 12 years of operation in China, we have served over 800 customers

  • CE and RoHS approved

  • Each model of our stepper motor is suitable for various applications

Dimensions

1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing 0



Motor Specifications



Step Angel



1.8 °



Fram Size



42 mm



Number of Phase



2 Phase



Rated Current



2Amp



Holding Torque



450 mN.m



Resistance



1.1 ohm



Inductance



2.6 mH



Rotor Inertia



57g-cm²



Motor weight



0.3kg



Lead Screw



Tr8X4



Connection



Bipolar





Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing 1 1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing 2 1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing 3 1.8 Degree NEMA 17 Stepper Motor Tr8*4 40mm Body 2.0A For Mechanical Processing 4





Please click the "Get  a quote" button below to tell us your requirements.
