Special Shaft Stepper Motor
Created with Pixso.

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor

name

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor

Brand Name: Casun
Model Number: 86SHD4109-37S
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
5.0N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Dual Shaft 37mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

86mm Hybrid Stepper Motor

,

1.8 Degree Hybrid Stepper Motor

,

NEMA 34 Hybrid Stepper Motor

Product Description

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor



Mechanical processing, Robotics technology, Automation equipment.The NEMA 34 stepper motor has a high current capacity and can provide high torque output.



Features:

  • We are experts in drivetrain solutions

  • Professional drivetrain solution specialist

  • We have been operating in China for 12 years and have served over 800 customers

  • For high-tech industry and electronic industry equipment

  • Your purchase comes with a ten-year warranty, ensuring confidence





Motor Specifications



Step Angel

1.8 °

Fram Size

86 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

5.0 N.m

Resistance

2.4 ohm

Inductance

23 mH

Rotor Inertia

1400 g-cm²

Motor weight

2.2 kg

Number of leads

4

Connection

Bipolar

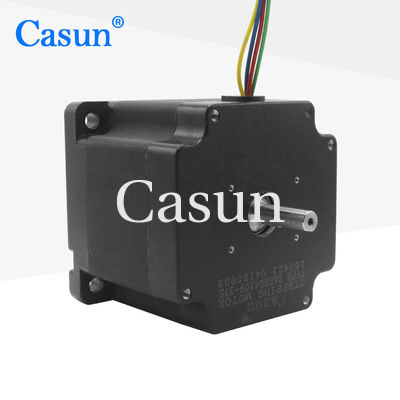

Appearance

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 0

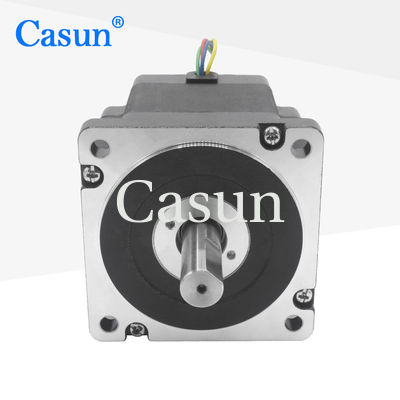

Dimensions

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels




Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

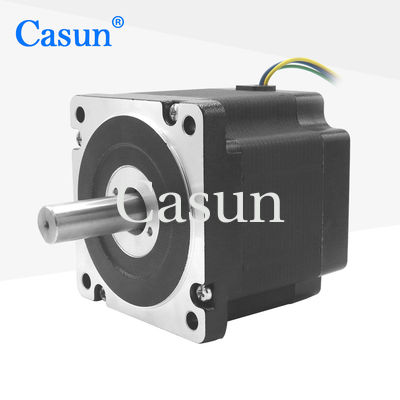

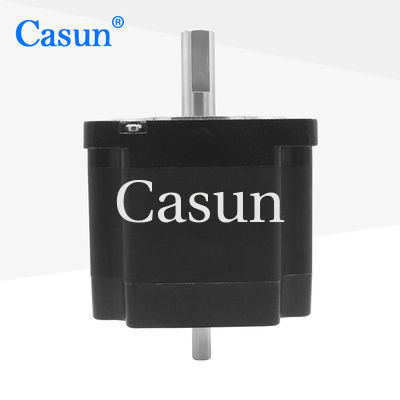

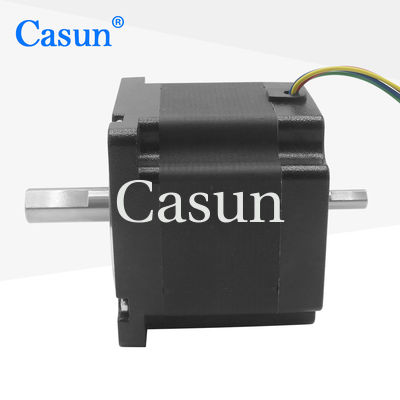

1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 2 1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 3 1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 4 1.8 Degree NEMA 34 86mm Hybrid Stepper Motor Length 5N.M Cnc Kit Stepping Motor 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

86mm Hybrid Stepper Motor

1.8 Degree Hybrid Stepper Motor

NEMA 34 Hybrid Stepper Motor
