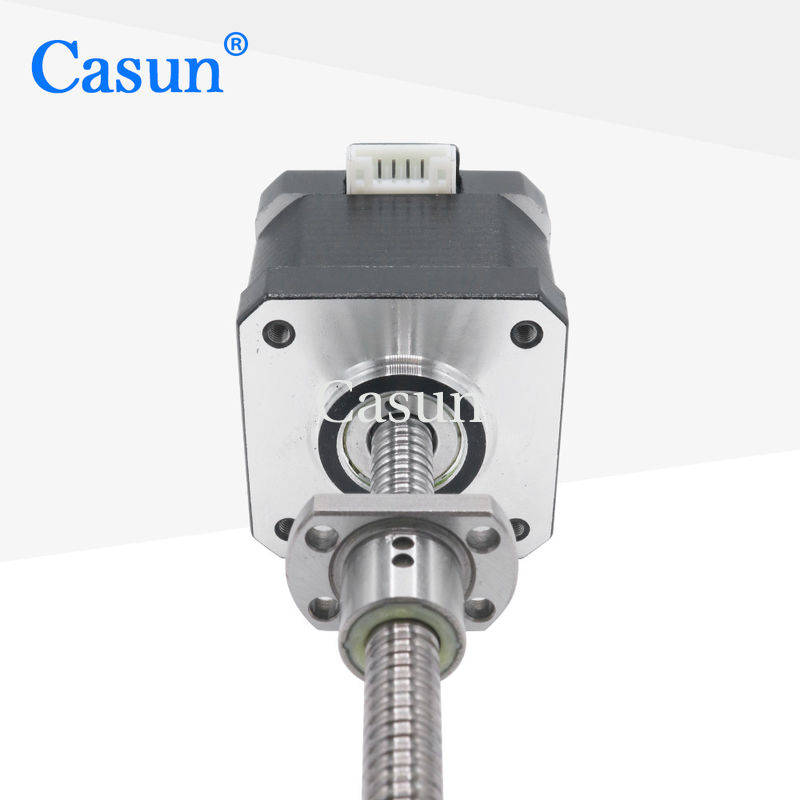

Ball Screw Stepper Motor NEMA 17 Tr8*2 450mN.M Two Phase CE ISO

Ball Screw Stepper Motor NEMA 17 Tr8*2 450mN.M Two Phase CE ISO

Brand Name:	Casun
Model Number:	42SHD0261-200GTH
MOQ:	1PC
Price:	$12-$12.8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Body:

40mm

Current:

1.68 Amp

Holding Torque:

450mN.m

Shaft:

Ball Screw Shaft 200mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Ball Screw Stepper Motor NEMA 17

Two Phase Stepper Motor NEMA 17

Product Description

Ball Screw Stepper Motor NEMA 17 Tr8*2 450mN.M Two Phase CE ISO

Product Overview

Ball Screw Stepper Motor NEMA 17 Tr8*2 450mN.m Two Phase with CE ISO certification. The NEMA 17 ball screw transmission mechanism has excellent wear resistance and durability, and can maintain good performance under long-term high load operation.

Applications: Fiber laser cutting machine, Planar plotter, Small CNC machine tool

Key Features

Bipolar or unipolar versions available
Specializing in tailor-made services is our expertise
Available in single or double shaft versions
Having operated in China for 12 years, we have served over 800 customers
Your purchase is backed by a ten-year warranty, ensuring your confidence

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 Amp
Holding Torque	450 mN.m
Resistance	1.95 ohm
Inductance	4.4 mH
Rotor Inertia	57g-cm²
Motor Weight	0.3 kg
Lead Screw	Tr8X2
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Ready to Get Started?

Please click the button below to tell us your requirements.

Get a Quote
