products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Close Loop Stepper Motor
Created with Pixso.

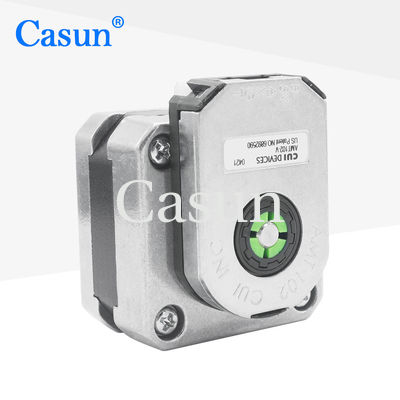

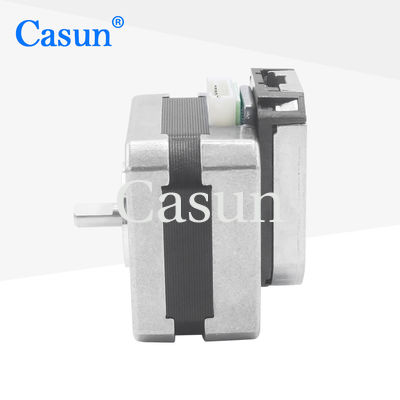

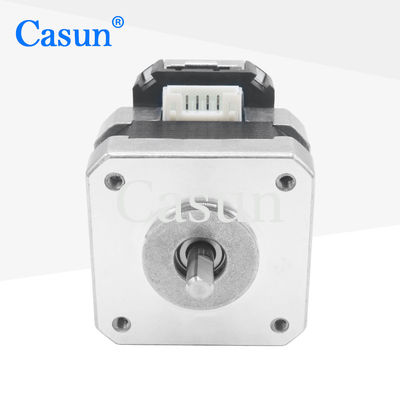

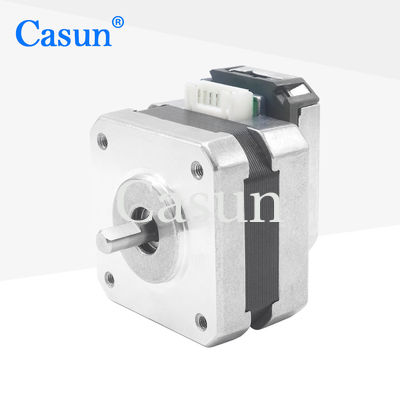

42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory

name

42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory

Brand Name: Casun
Model Number: 42SHD0516-12BQ
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
200mN.m
Current:
1.5A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 12mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Stepper Motor With Encoder 1.5A

,

42×42×26mm Stepper Motor

,

Stepper Motor For CNC Accessory

Product Description

42×42×26mm Stepper Motor With Encoder 1.5A NEMA 17 For CNC Accessory

The 42mm Hybrid Stepper Motor Series has a relatively high torque output and can maintain a high speed.

Its shaft can withstand high loads and is suitable for various applications such as printing machinery, automation equipment, and robots.



Features:

  • Every stepper motor model has use in a variety of situations.

  • Needed dealers! !

  • Available in single or double shaft versions

  • High torque and high precision

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

200 mN.m

Resistance

1.8 ohm

Inductance

2.4 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

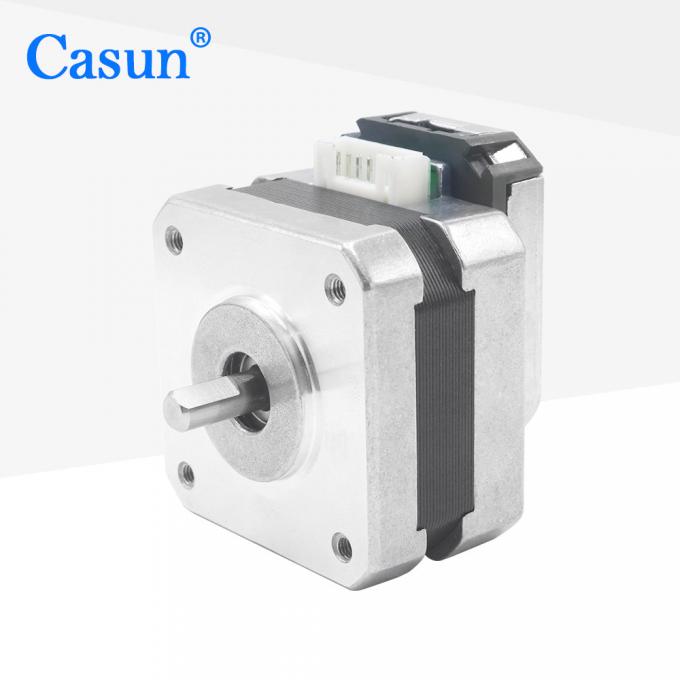

Appearance

42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 0

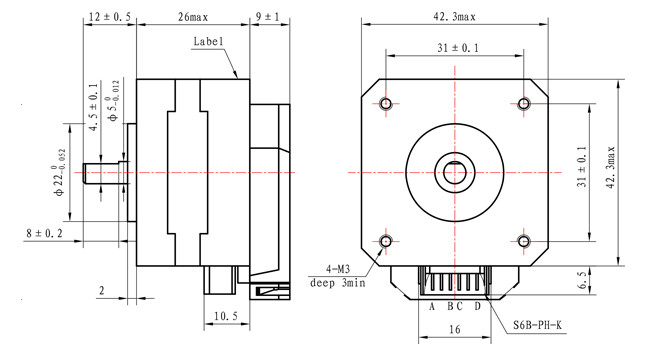

Dimensions

42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 2 42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 3 42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 4 42×42×26mm Stepper Motor With Encoder  1.5A NEMA 17 For CNC Accessory 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

Stepper Motor With Encoder 1.5A

42×42×26mm Stepper Motor

Stepper Motor For CNC Accessory
