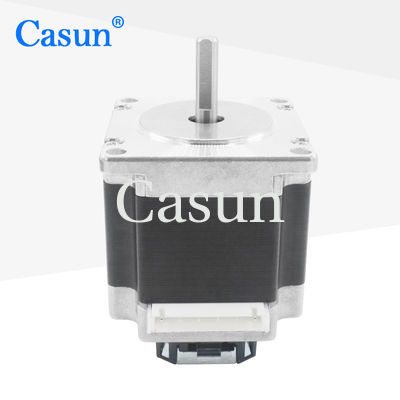

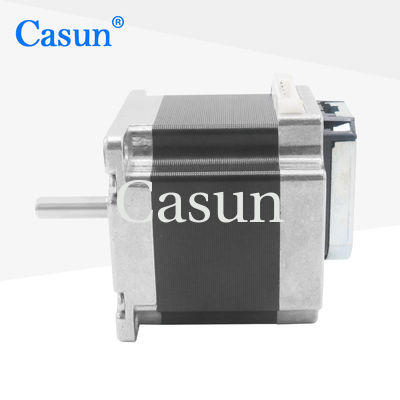

Flat Shaft NEMA 23 Stepping Motor With Encoder 4 Phase 3.0V 2.5A For 3 Axsis 4 Axsis CNC Kit

Flat Shaft NEMA 23 Stepping Motor With Encoder 4 Phase 3.0V 2.5A For 3 Axsis 4 Axsis CNC Kit

Brand Name:	Casun
Model Number:	57SHD0408-25BQ
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

1.2N.m

Current:

2.5A

Motor Length:

54mm

Shaft:

Milling Flat Shaft 25mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Flat Shaft NEMA 23 Stepping Motor

4 Axsis NEMA 23 Stepping Motor

Product Description

Flat Shaft NEMA 23 Stepping Motor With Encoder 4 Phase 3.0V 2.5A For 3 Axis 4 Axis CNC Kit

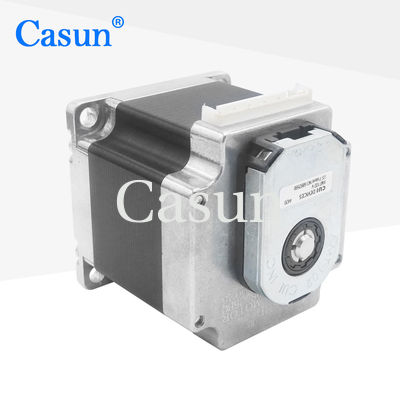

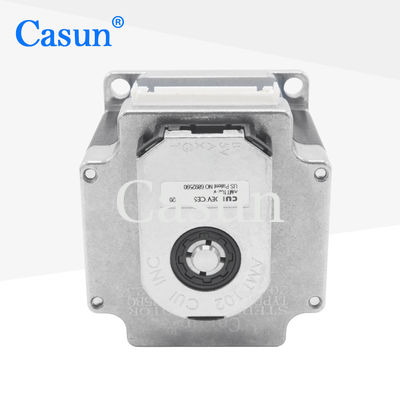

NEMA 23 Stepping Motor With Encoder 4 Phase 3.0V 2.5A For 3 Axis 4 Axis CNC Kit. The 57mm Hybrid Stepper Motor provides position feedback from the encoder, allowing the position of the stepper motor to be corrected and calibrated. The real-time feedback of the encoder enables the system to respond more quickly to control commands.

Key Features

High torque and high precision
Multiple international certifications
Engineers will reach out within 48 hours to offer optimal solutions
Accept contract manufacturing

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1.2 N.m
Resistance	1.2 ohm
Inductance	4.2 mH
Rotor Inertia	260 g-cm²
Motor Weight	0.6 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6 N.m	1.8°	41 mm	D Shaft-21 mm	1.0 A
57SHD4415-21B	1.1 N.m	1.8°	54 mm	D Shaft-21 mm	3.0 A
57SHD4816-21B	2.0 N.m	1.8°	76 mm	D Shaft-21 mm	3.0 A
57SHD4913-21B	2.5 N.m	1.8°	83 mm	D Shaft-21 mm	3.0 A
57SHD4934-20B	3.0 N.m	1.8°	100 mm	D Shaft-20 mm	3.0 A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
