GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Close Loop Stepper Motor > 57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed

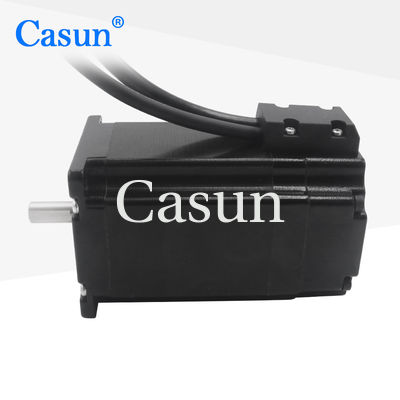

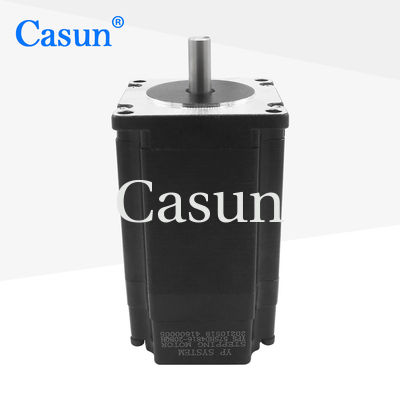

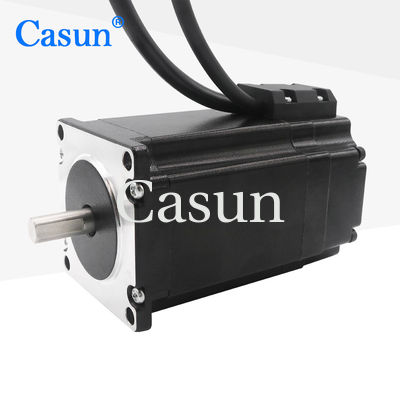

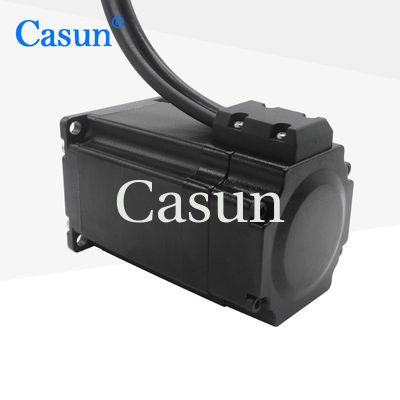

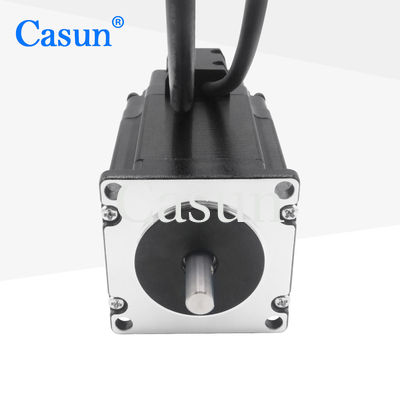

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4816-20BQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Nema 23 Closed Loop Stepper Motor

,

2.0Nm Closed Loop Stepper Motor

,

1.8 Degree Closed Loop Stepper Motor

Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The stepper motor itself is an open-loop control system, but when combined with an encoder, it can achieve closed-loop control.

Adjustments can be made based on actual feedback information to better adapt to load changes and environmental disturbances.



Features:

  • High torque and high precision

  • Our products offer high torque and precision

  • We have been operating in China for 12 years and have served over 800 customers

  • Our engineers will reach out to you within 48 hours to offer the optimal solution

  • Accept contract manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

2.0 N.m

Resistance

0.95 ohm

Inductance

3.6 mH

Rotor Inertia

460 g-cm²

Motor weight

1.1 kg

Number of leads

4

Connection

Bipolar

Appearance

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 0

Dimensions

57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 2 57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 3 57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 4 57X57X76mm Nema 23 Closed Loop Stepper Motor 1.8 Degree 2 Phase 2.0Nm With Enclosed 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

Nema 23 Closed Loop Stepper Motor,

2.0Nm Closed Loop Stepper Motor,

1.8 Degree Closed Loop Stepper Motor
