Close Loop Stepper Motor
Created with Pixso.

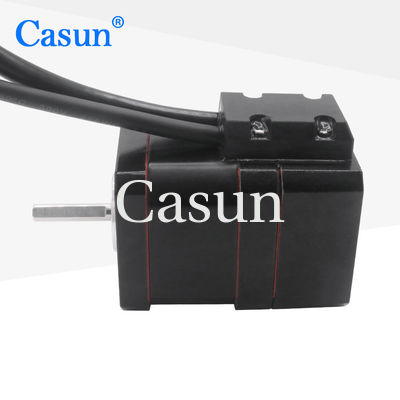

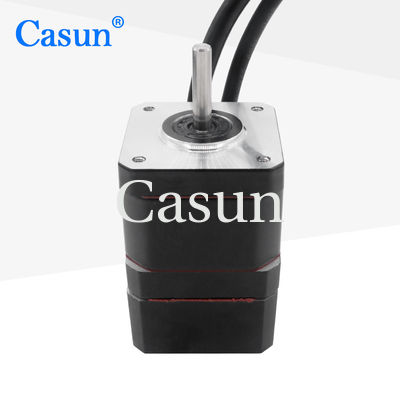

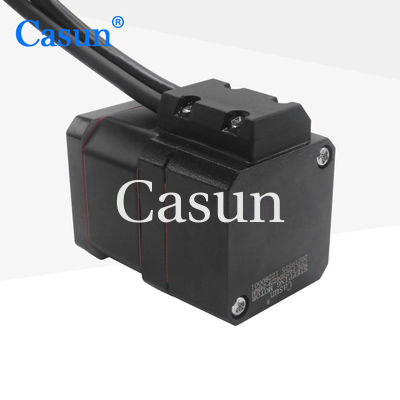

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

Brand Name: Casun
Model Number: F42SHD4229-24BQH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 17 Waterproof Stepper Motor

,

1.68A Waterproof Stepper Motor

,

40mm Body Waterproof Stepper Motor

Product Description

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder

The closed-loop motor reduces the complexity of manual debugging and simplifies the installation and debugging process of the system.

Robot motion control, CNC machine tools, medical equipment, automated warehousing systems.



Features:

  • Every stepper motor model has use in a variety of situations

  • Offer custom services

  • Available in single or double shaft versions

  • We possess expertise in drivetrain solutions

  • High-tech industry and electronic industry equipment must possess "multiple international certifications"





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

400 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

57 g-cm²

Motor weight

0.4 kg

Number of leads

4

Protection class

IP65

Appearance

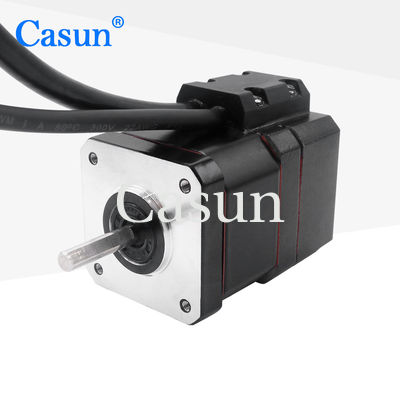

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 0

Dimensions

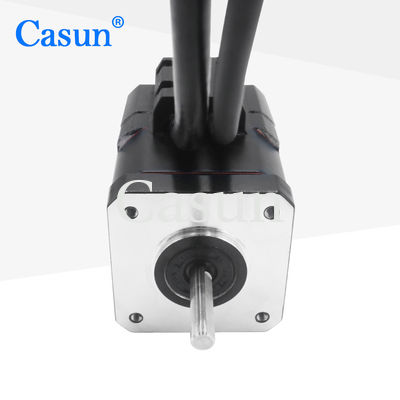

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 2 1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 3 1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 4 1.8 Degree 2 Phase NEMA 17 Waterproof Stepper Motor 40mm Body 1.68A With Encorder 5



Please click the "Get a quote" button below to tell us your requirements.
