Product Description

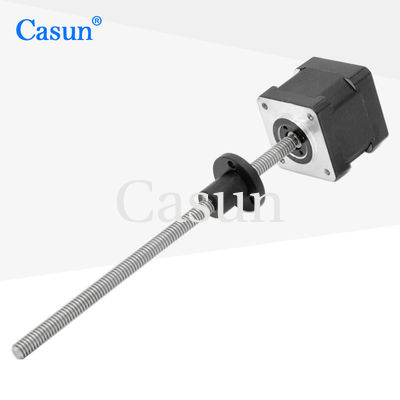

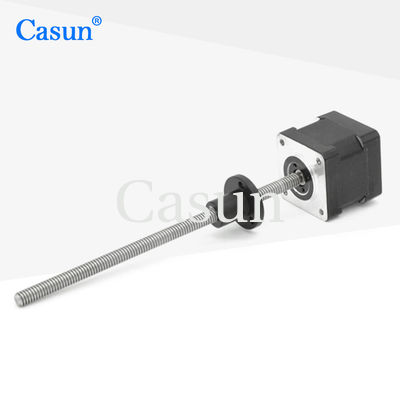

NEMA14  captive stepper motor with lead screw holding torque 0.2kg tr8*8 for madical equipment

The NEMA14 captive stepper motor you mentioned is designed with a lead screw and has a holding torque of 0.2kg. The lead screw specification you provided is TR8*8. Here's what this information implies:

Motor Type: 2-phase stepper motor
Holding Torque: 0.2kg (kilograms)
Lead Screw: TR8*8

The holding torque indicates the maximum torque the motor can exert while stationary to prevent movement, typically measured in N.m (Newton-meters) or kg.cm (kilogram-centimeters). In this case, it is specified as 0.2kg, which means the motor can hold objects weighing up to 0.2kg without rotating when power is applied.



The lead screw specification TR8*8 refers to the thread type and pitch of the lead screw. TR8 indicates a trapezoidal thread profile with an 8mm major diameter. The "*8" indicates that the lead screw has a pitch of 8mm, meaning it advances by 8mm for each complete revolution.

This type of stepper motor with a captive lead screw is commonly used in medical equipment, such as medical pumps, precision positioning systems, or other applications where controlled linear motion is required.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

200mN.M NEMA 14 Stepper Motor With Lead Screw  Tr8x8 P2 Stepper Motor Captive For Madecal Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35mm

Number of Phase



2 Phase

Rated Current



0.4Amp

Holding Torque



200mN.m

Resistance



200ohm

Inductance



20mH

Rotor Inertia



14g-cm²

Motor weight



0.2kg

Lead Screw



Tr8X8

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
