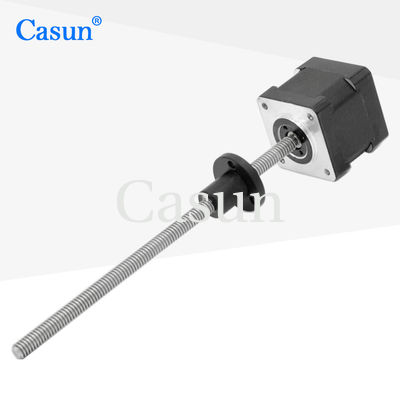

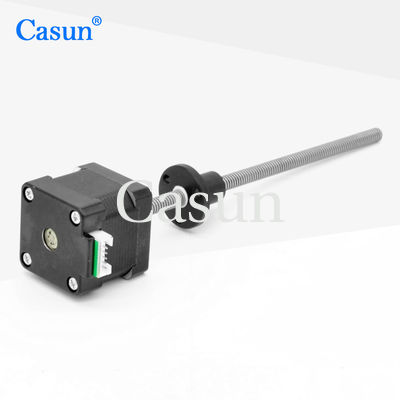

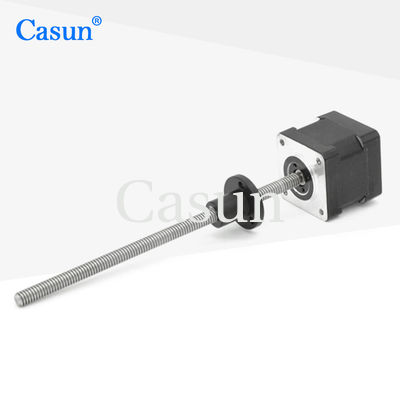

0.4Amp NEMA 14 Hybrid Stepper Motor Tr5*1 P1 Micro Step Motor For Automation Machine

NEMA 14 Hybrid Stepper Motor Tr5*1 (P1) Step Motor Micro Stepper Motor For Automation Machine

NEMA14  captive stepper motor with lead screw holding torque 0.2kg tr5*4 for madical equipment

The NEMA14 captive stepper motor you mentioned is designed with a lead screw and has a holding torque of 0.2kg. The lead screw has a TR5*4(p1) specification. Here are the details:


Motor Type: 2-phase stepper motor
Holding Torque: 0.2kg (kilograms)
Lead Screw: TR5*4(p1)

The holding torque of 0.2kg indicates the maximum torque the motor can generate to prevent rotation or hold a load in place. Holding torque is typically measured in N.m (Newton-meters) or kg.cm (kilogram-centimeters).

The lead screw specification TR5*4(p1) refers to the thread type, pitch, and additional characteristics of the lead screw. TR5 indicates a trapezoidal thread profile with a 5mm major diameter. The "*4" indicates a pitch of 4mm, meaning the lead screw advances by 4mm for each complete revolution. The "(p1)" suggests that the lead screw may have specific properties or modifications, which can vary depending on the manufacturer or specific application requirements.


This type of stepper motor with a captive lead screw is commonly used in automation machines, such as automated assembly systems, precision positioning systems, or other applications that require controlled linear motion.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
