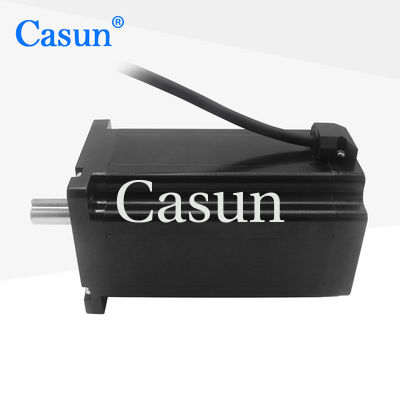

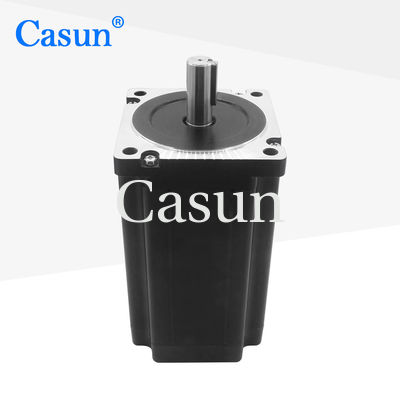

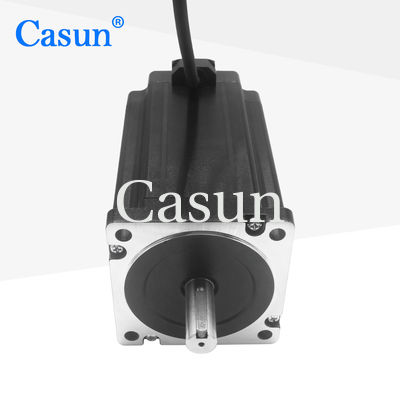

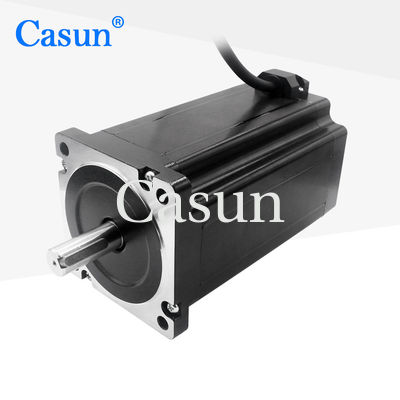

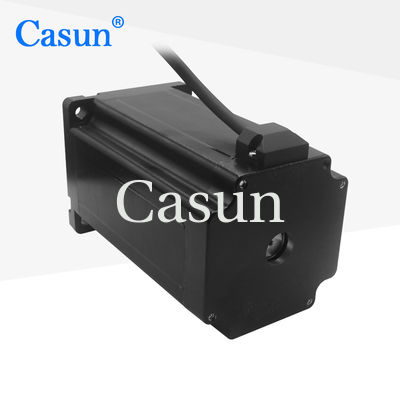

86*86*149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine

86*86*149mm NEMA 34 Hybrid Stepping Motor 12N.M With Laser Cutting Machine

NEMA 34 Hybrid Stepping Motor

12N.M Hybrid Stepping Motor

149mm NEMA 34 Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

86SHD4508-34H

Contact Us

Request A Quote
Product Details
Step Angle:
1.8°
Number Of Phase:
2
Rated Current:
6.0A
Body:
149mm
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$9.49-$14
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
