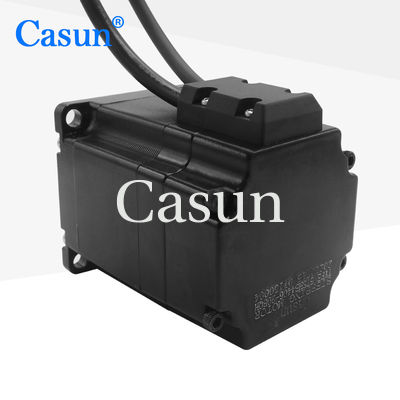

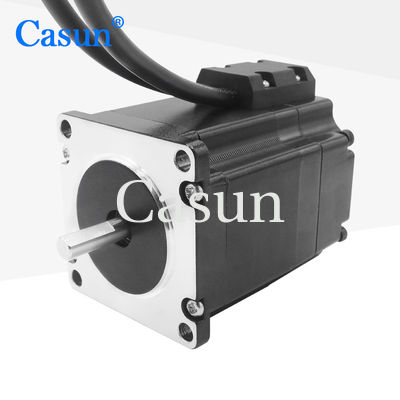

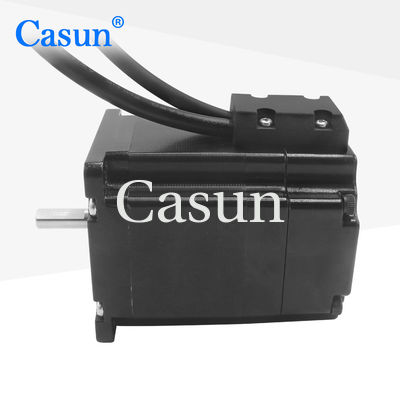

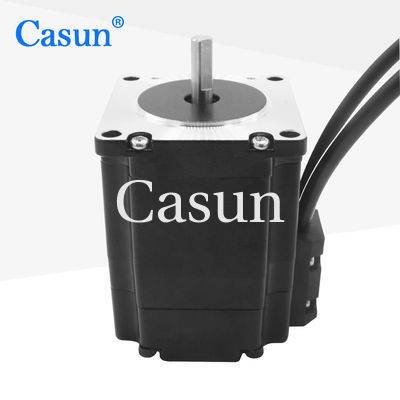

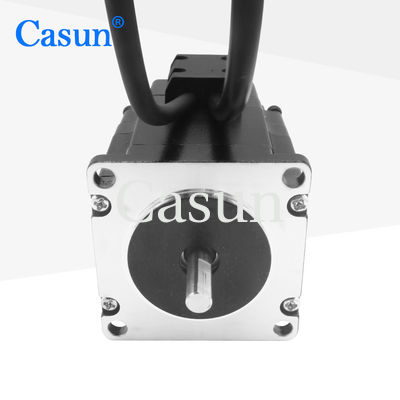

0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation

name

0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation

Brand Name: Casun
Model Number: 57SHB4406-20BQH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
3.0A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.9 Degree Nema 23 Stepper Motor

,

Nema 23 Stepper Motor With Encoder

Product Description

Nema 23 0.9 Degree Stepper Motor 1.2N.M 57*57*54mm With Encoder For Industrial Automation

Adopting closed-loop control technology, precise position control can always be maintained under high-speed motion and complex loads.

Semiconductor equipment, LED automation equipment, printing machines, packaging machines, etc.



Features:

  • We offer tailored services and invite contract manufacturing

  • Our products offer high torque and precision

  • We are looking for dealers!

  • Each model of our stepper motor is suitable for diverse applications

  • Accept contract manufacturing





Motor Specifications



Step Angel

0.9 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

1.2 N.m

Resistance

0.9 ohm

Inductance

4.5 mH

Rotor Inertia

260 g-cm²

Motor weight

0.8 kg

Number of leads

4

Connection

Bipolar

Appearance

0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 0

Dimensions

0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 2 0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 3 0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 4 0.9 Degree Nema 23 Stepper Motor 1.2N.M 57*57*54mm For Industrial Automation 5



Please click the "Get a quote" button below to tell us your requirements.
