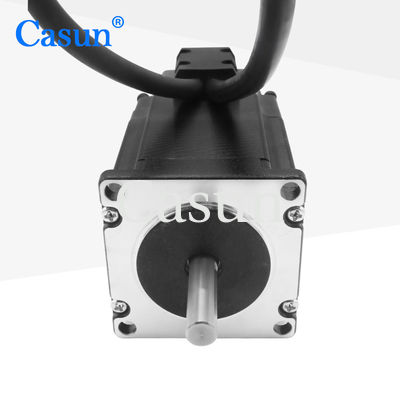

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4840-30BQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Close Loop Stepper Motor Hybrid

,

Stepper Motor Hybrid NEMA 23

,

Nema 23 Stepper Motor With Encoder

Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
5.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 30mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
5.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 30mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines

Adopting closed-loop control technology, precise position control can always be maintained under high-speed motion and complex loads.

Semiconductor equipment, LED automation equipment, printing machines, packaging machines, etc.



Features:

  • High torque and high precision

  • Our products offer high torque and precision

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • Each model of our stepper motor is suitable for diverse applications

  • Accept contract manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

76 mm

Number of Phase

2 Phase

Rated Current

5.0 A

Holding Torque

2.0 N.m

Resistance

0.48 ohm

Inductance

1.6 mH

Rotor Inertia

460 g-cm²

Motor weight

1.2 kg

Number of leads

4

Connection

Bipolar

Appearance

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 0

Dimensions

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 2 Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 3 Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 4 Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines 5



Please click the "Get a quote" button below to tell us your requirements.
