Home > products > Close Loop Stepper Motor > 42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

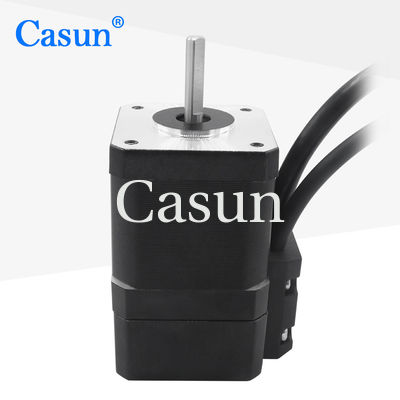

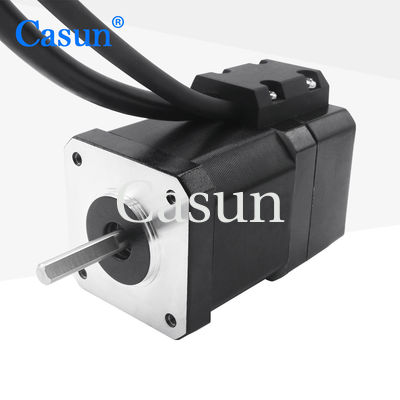

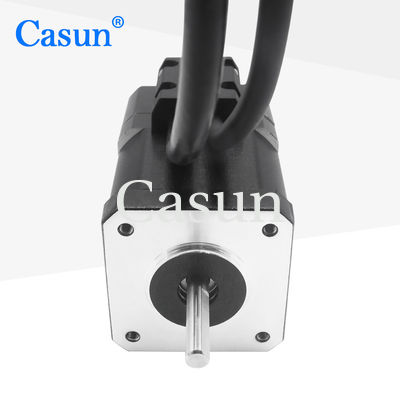

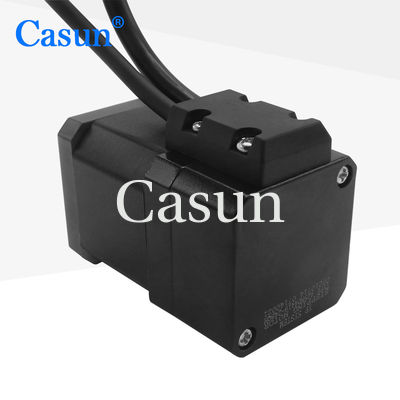

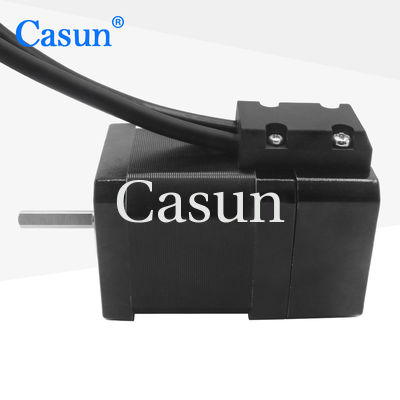

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4419-24BQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

1.8 Degree Nema 11 Stepper Motor

,

Nema 11 Stepper Motor With Encoder

Step Angel:
1.8°
Holding Torque:
540mN.m
Current:
1.68A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
540mN.m
Current:
1.68A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

The closed-loop motor achieves smooth motion by adjusting the current and speed of the motor, reducing vibration and noise.

Advantages of high precision, high responsiveness, high reliability, and smooth motion.



Features:

  • High-tech industry and electronic industry equipment must possess "multiple international certifications."

  • Our engineers will contact you within 48 hours to offer the optimal solution.

  • Available in single or double shaft versions

  • We possess expertise in drivetrain solutions

  • Dealers wanted!





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

540 mN.m

Resistance

1.65 ohm

Inductance

2.8 mH

Rotor Inertia

82 g-cm²

Motor weight

0.5 kg

Number of leads

4

Insulation class

Class B

Appearance

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 0

Dimensions

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 2 42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 3 42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 4 42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 5



Please click the "Get a quote" button below to tell us your requirements.
