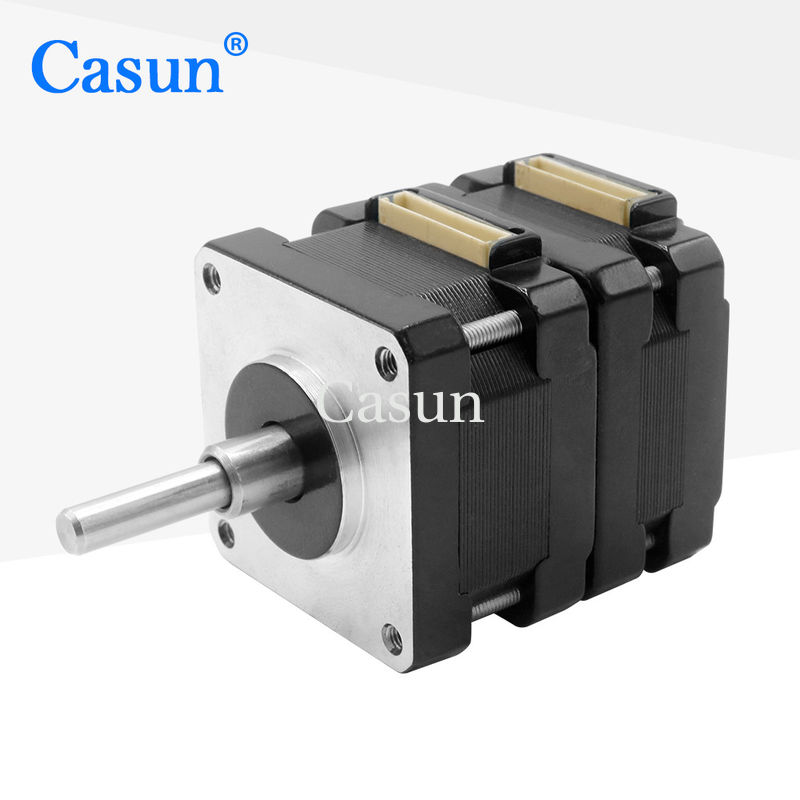

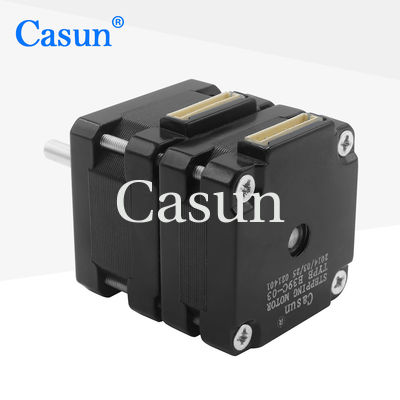

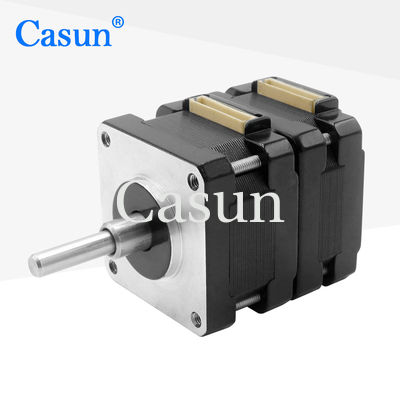

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

Brand Name:	Casun
Model Number:	E39C-09
MOQ:	1PC
Price:	$18-$23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

120mN.m

Current:

0.4A

Motor Length:

43.6mm

Shaft:

Round Shaft 24mm Length

Voltage:

12v

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 14 Bipolar Stepper Motor

120mN.M Bipolar Stepper Motor

Precision Structure Bipolar Stepper Motor

Product Description

nema14 hybrid stepper motor 39x39x43.6mm 120mN.m Multisport motor

The Nema14 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.4A
Holding torque: 120mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	120mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
