E42 Serious Multi Sport Bipolar Stepper Motor NEMA 17 200mN.M For Automation Equipment

E42 Serious Multi Sport Bipolar Stepper Motor NEMA 17 200mN.M For Automation Equipment

Brand Name:	Casun
Model Number:	S2841114111-C27L
MOQ:	1PC
Price:	$18-$23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

55mN.m

Current:

0.4A

Motor Length:

55mm

Shaft:

12.7

Voltage:

12v

Tape:

Multilayer

Color:

Black

Lead Screw Guide:

Tr4.9x4(p1)

Extension Stroke:

27.5mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Multi Sport Bipolar Stepper Motor

NEMA 17 Bipolar Stepper Motor

Product Description

E42 Serious Multi Sport Bipolar Stepper Motor NEMA 17 200mN.M For Automation Equipment

The NEMA17 E42 Serious Multi-Sport Motor is a high-performance bipolar stepper motor designed for automation equipment applications. This hybrid stepper motor combines the best features of permanent magnet and variable reluctance motors, delivering high torque and precision positioning.

Stepper motors convert digital pulses into precise mechanical movements, making them ideal for applications requiring accurate positioning such as robotics, 3D printing, and CNC machines. The holding torque of 55 mN.m indicates the motor's ability to generate substantial force to resist external loads.

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	28mm
Number of Phase	2 Phase
Rated Current	0.67A
Holding Torque	55mN.m
Resistance	30Ω
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor Weight	0.3kg
Number of Leads	4
Connection	Bipolar

Appearance

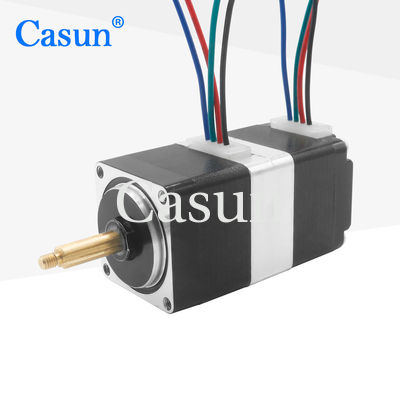

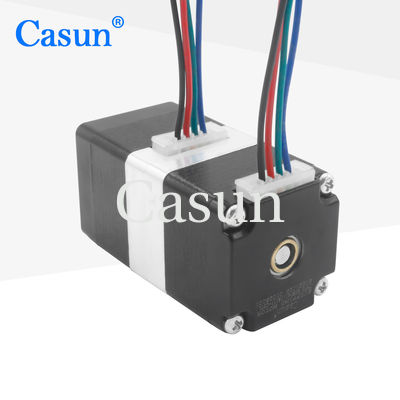

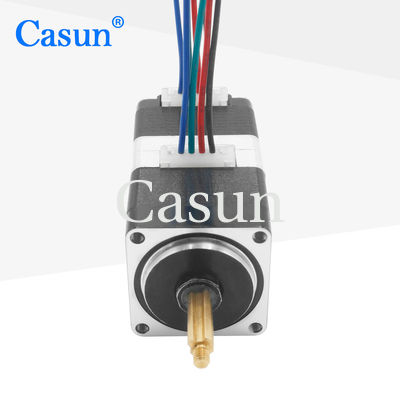

Motor Appearance

Dimensions

Motor Dimensions

Torque Curves

Detailed torque curve data and performance characteristics available upon request.

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.

Encoder

Brake

Gearbox

Connector

Please click the "Get a quote" button below to tell us your requirements and receive detailed pricing information.
