Home > products > Multilayer Motor > NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry

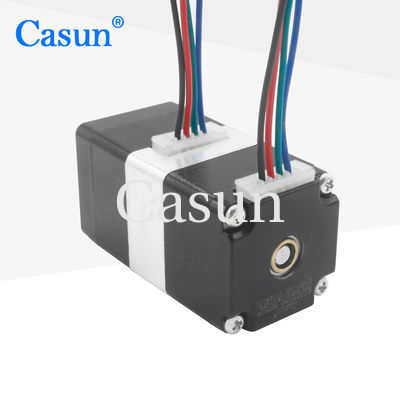

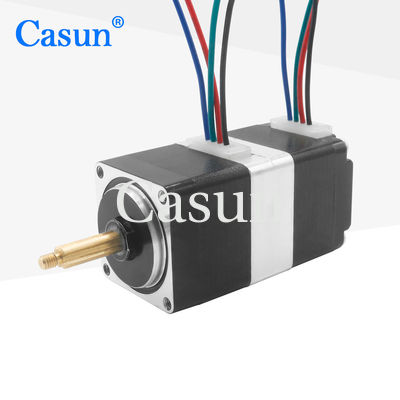

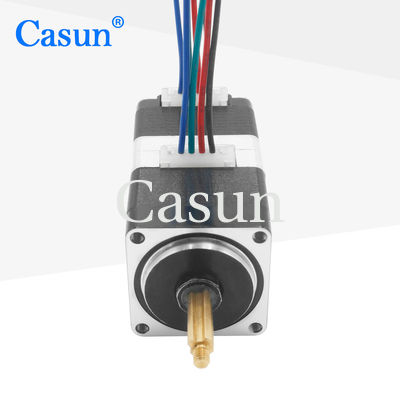

NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry
NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry
NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry
NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry
NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry

NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: S28D43034111-C41L

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $18-$23

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Multi Sport Bipolar Stepper Motor

,

NEMA 11 Bipolar Stepper Motor

Step Angel:
1.8°
Holding Torque:
55mN.m/80mN.m
Current:
0.67A
Motor Length:
68mm
Shaft:
25mm
Voltage:
6.16v
Tape:
Multilayer
Color:
Black
Lead Screw Guide:
Tr4.9x4(p1)
Extension Stroke:
40.8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
55mN.m/80mN.m
Current:
0.67A
Motor Length:
68mm
Shaft:
25mm
Voltage:
6.16v
Tape:
Multilayer
Color:
Black
Lead Screw Guide:
Tr4.9x4(p1)
Extension Stroke:
40.8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA11 S28D43 Serious Multi-Sport Motor 55mN.M 80mN.M Multilayer Motor For Medical Industry



nema11hybrid stepper motor 28X28X68mm 55mN.m  80mN.m Linear Multisport motor

The Nema17 stepper motor has the following specifications:

Step angle: 1.8 degrees per step
Size: 28 x 28 x 68 mm

Holding torque: 55 mN.m/80mN.m (milliNewton meter)

Type: Linear Multisport motor

The holding torque of a stepper motor is the amount of torque required to stop the motor from rotating when it is energized. In this case, the NEMA 11 hybrid stepper motor has a holding torque of 55 mN.m, which indicates that it can generate a considerable amount of force to resist external loads.

a stepper motor is a type of electric motor that converts digital pulses into precise mechanical movements. Hybrid stepper motors combine the best features of both permanent magnet and variable reluctance motors, and they are commonly used in applications that require accurate positioning, such as robotics, 3D printing, and CNC machines.

Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.67A

Holding Torque



55mN.m/80mN.m

Resistance



30ohm

Inductance



45mH

Rotor Inertia



20 g-cm²

Motor weight



0.3kg

Number of leads



4

Connection



Bipolar





Appearance

NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry 0

Dimensions

NEMA 11 S28D43 Serious Bipolar Stepper Motor 55mN.M 80mN.M For Medical Industry 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs



Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
