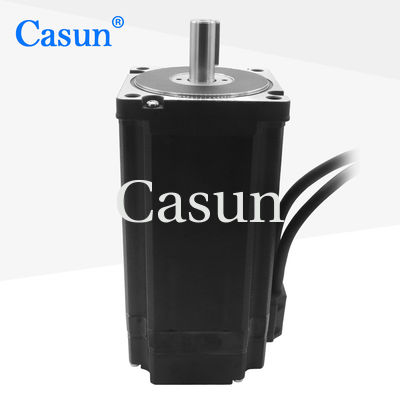

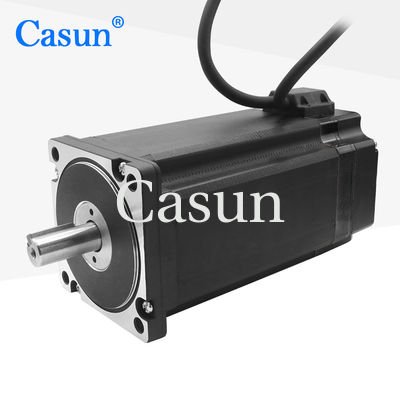

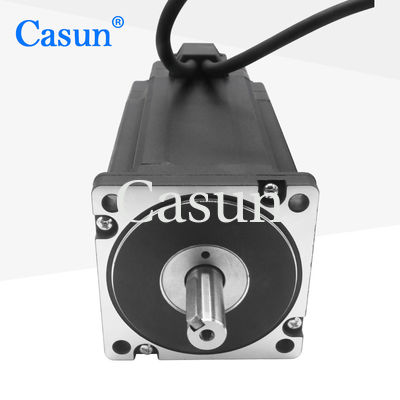

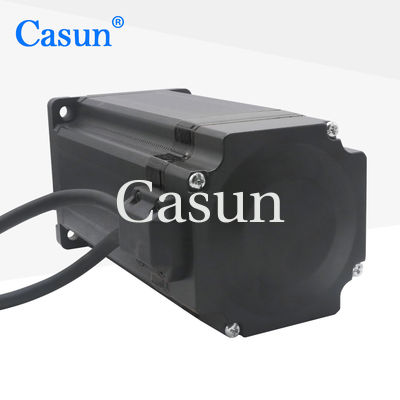

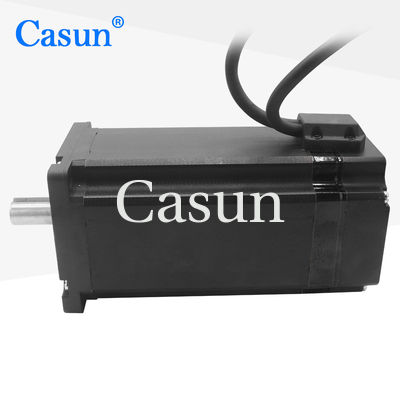

NEMA 34 Closed Loop Hybrid CNC Stepping Motor 12N.M 150mm Length With Encoder

NEMA 34 Closed Loop Hybrid CNC Stepping Motor 12N.M 150mm Length With Encoder

Brand Name:	Casun
Model Number:	86SHD4509-34QH
MOQ:	1PC
Price:	$49-$59
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Body:

150mm

Current:

6 Amp

Holding Torque:

12N.m

Shaft:

Keyway Shaft 34mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

Closed Loop Hybrid CNC Stepping Motor

NEMA 34 CNC Stepping Motor

150mm Length NEMA 34 Closed Loop Motor

Product Description

NEMA 34 Closed Loop Hybrid CNC Stepping Motor

High-performance 12N.M closed loop hybrid stepping motor with encoder feedback for precise CNC applications. Features 150mm length and advanced closed-loop control technology.

Key Features

Bipolar or unipolar configurations available
Single or double shaft versions to suit your application
Encoder feedback for step loss detection and position verification
Reverse movement detection capability
Versatile design suitable for various industrial scenarios
Expert engineering support available within 48 hours

Motor Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	86 mm
Number of Phase	2 Phase
Rated Current	6 Amp
Holding Torque	12N.m
Resistance	0.69 Ω
Inductance	7.2 mH
Rotor Inertia	3600 g·cm²
Motor Weight	5.5 kg
Encoder Pulse	1000
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 minute

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Torque Curves

Comprehensive torque performance data available for download to assist with system integration and performance planning.

Custom Motor Solutions

If our standard motor configuration doesn't meet your specific requirements, we offer comprehensive customization services including special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and other modifications.

Available Options

With over 12 years of experience serving more than 800 customers, our engineering team is ready to provide the optimal solution for your application.
