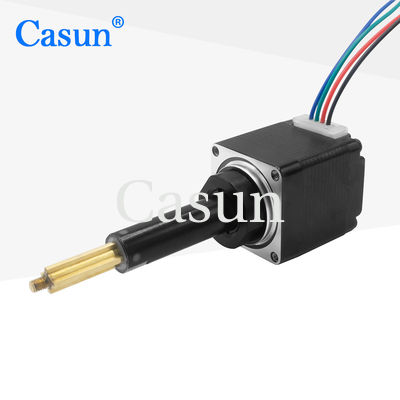

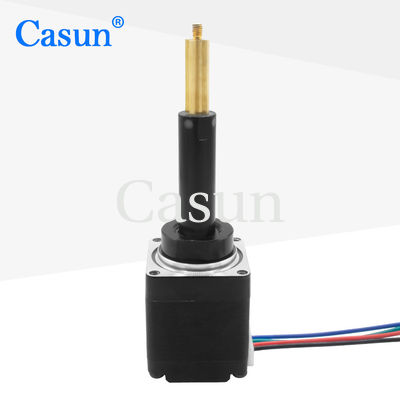

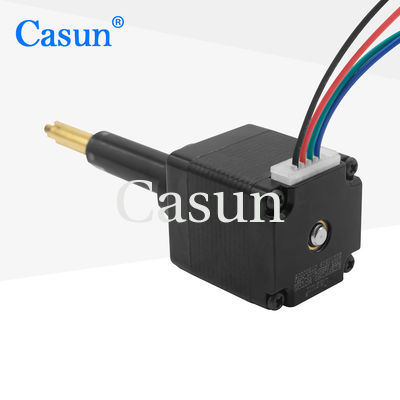

Nema 8 Stepper motor linear actuator 6,24Vdc 0.4Amp 0.3kg linear stepper motor for dispenser
Nema 8 is a standard stepper motor size defined by the National Electrical Manufacturers Association (NEMA). It specifies the mounting dimensions and other mechanical characteristics of the motor.
The voltage range of 6 to 24 Vdc suggests that the motor can be operated within this voltage range. The specific voltage you choose will depend on the application and the driver used to control the motor.
Features:
Step Angel
|
1.8 ° |
Fram Size
|
20mm |
Number of Phase
|
2 Phase |
Rated Current
|
0.4Amp |
Holding Torque
|
-kg at -pps |
Resistance
|
11.5ohm |
Inductance
|
3.50mH |
Rotor Inertia
|
6g-cm² |
Motor weight
|
0.2kg |
Lead
|
35mm |
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Body Length | Diameter of Screw | Pitch | Length of Screw | ||
20 mm 34 mm 40 mm 48 mm 60 mm |
5 | 2 | 20-1000 mm | ||
8 | |||||
6.35 | 1.27 | ||||
3.175 | |||||
6.35 | |||||
6.5 | 3 | ||||
6.35 | |||||
8 | 1 | ||||
2 | |||||
4 | |||||
8 | |||||
12 |
