Home > products > DC Brushless Motor > DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan

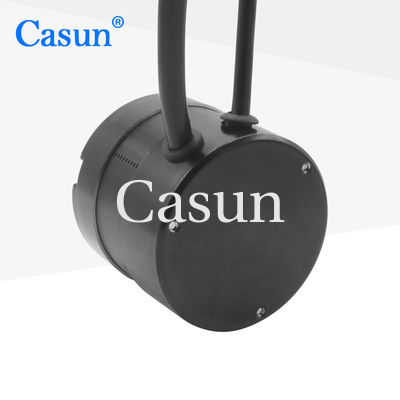

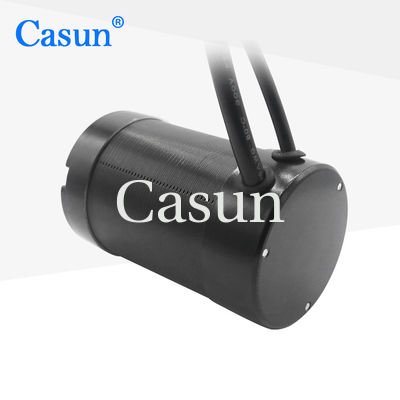

DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan
DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan
DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan
DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan

DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 57BL56R30-2418-30K

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $18-$28

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1900rpm Nema 23 Brushless Motor

,

0.16N.M Nema 23 Brushless Motor

Speed(rpm):
1900RPM
Torque:
0.16N.m
Voltage(v):
7.4V
Rated Power:
30W
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Speed(rpm):
1900RPM
Torque:
0.16N.m
Voltage(v):
7.4V
Rated Power:
30W
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

DC Electric Motors Nema23 Brushless Motor 1900rpm 0.16N.M 30w For Fan

Type: BLDC (Brushless DC)

BLDC motors are electric motors that use a permanent magnet rotor and electronically commutated stator winding to generate motion. They offer advantages such as higher efficiency, longer lifespan, and better controllability compared to brushed DC motors.
NEMA23: NEMA (National Electrical Manufacturers Association) is a standard rating for motor frame sizes. NEMA23 refers to a specific motor size with a faceplate dimension of approximately 2.3 inches by 2.3 inches.

Max Speed: 1900 rpm (revolutions per minute)

This indicates the maximum rotational speed the motor can achieve under ideal conditions. It suggests that the motor can rotate at a maximum speed of 1900 revolutions per minute.
DC Voltage: 7.4V

This specifies the operating voltage required for the motor. In this case, the motor is designed to operate on a DC power supply of 7.4 volts.
Power Rating: 30W (watts)

This indicates the power rating or electrical output of the motor. It suggests that the motor can deliver a maximum power of 30 watts.
Max Torque: 0.16 N.m (Newton meters)

This represents the maximum torque output of the motor, which is a measure of rotational force. In this case, the motor can generate a maximum torque of 0.16 Newton meters.



Features:

Dimensions

DC Electric Motors Nema 23 Brushless Motor 1900rpm 0.16N.M 30w For Fan 0







Motor Specifications



Fram Size



57 mm

Rated Current



2A

MaTorque



0.16N.m

Resistance



1900rpm

Inductance



1800rpm

Rate Power



30 W

Rate Voltage



7.4 V

Number of poles



4

Insulation Class



Class B

























Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs





Please click the "Get  a quote" button below to tell us your requirements.
