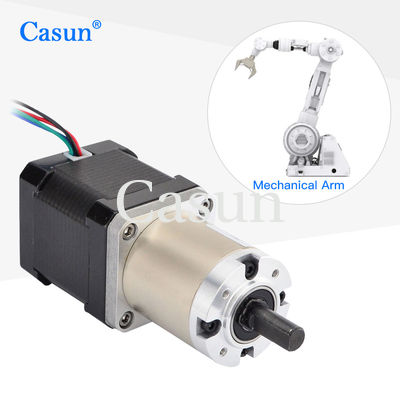

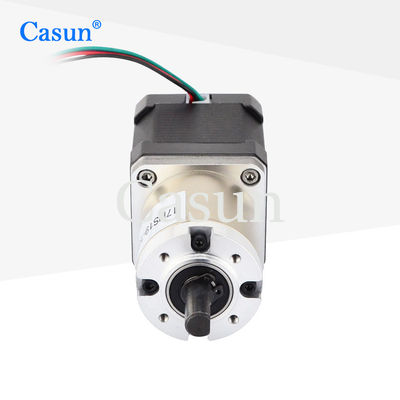

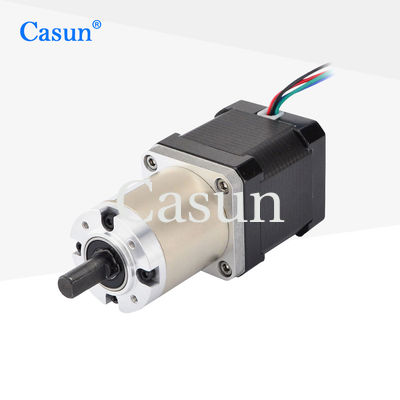

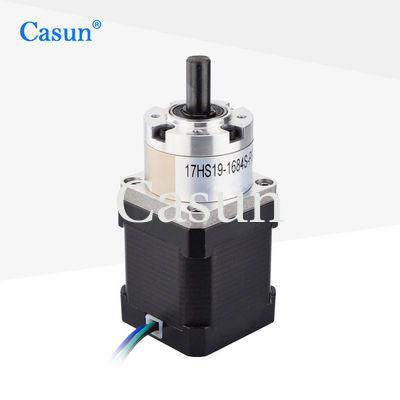

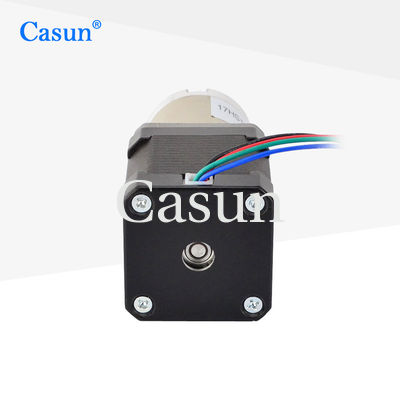

Nema 17 Stepper Motor 0.67 Amp Dc Motor For Robot Geared Stepper Motor

Nema 17 Stepper Motor 0.67 Amp Dc Motor For Robot Geared Stepper Motor

Brand Name:	Casun
Model Number:	42SHD4419-5G
MOQ:	5PC
Price:	$16.00-$22.00
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Holding Torque:

440mN.m

Lead Wire:

Length:

48mm

Rated Current:

1.68A

Rated Voltage:

12V

Gear Reduction Ratio:

5.18：1

Shaft:

8mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.67 Amp Nema 17 Stepper Motor

Nema 17 Stepper Motor For Robot

Product Description

Nema 17 Stepper Motor 0.67 Amp DC Motor For Robot Geared Stepper Motor

Product Overview

Nema 17 Gear Reducer Stepper Motor, 42x42x48mm 1.8 Degree 2 Phase, 440 mN.m Holding Torque

The 42mm deceleration stepper motor combines the characteristics of stepper motors and reducers, enabling precise positioning control and is suitable for applications that require high-precision positioning. Open loop control eliminates the need for position feedback, thereby reducing power consumption.

Key Features

Bipolar or unipolar versions available
Available in single or double shaft versions
Professional drivetrain solution specialist
Customizations on request
We offer custom services and accept contract manufacturing

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	440 mN.m
Resistance	1.65 Ω
Inductance	2.8 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.5 kg
Gear Reduction Ratio	5.18:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76
60 mm		19.2
26.8 mm	42.7 mm	51	70%
42.7 mm		71
		99.5
		139

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

We offer custom services and welcome dealers for contract manufacturing.
