98mN.M 1024pm Close Loop Stepper Motor With Encoder NEMA14 35X20mm

98mN.M 1024pm Close Loop Stepper Motor With Encoder NEMA14 35X20mm

Brand Name:	Casun
Model Number:	P35SHD0314-20QH
MOQ:	1PC
Price:	$18.9.54-$24.94
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

1.1Amp

Holding Torque:

90mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

1024pm Close Loop Stepper Motor

NEMA14 Close Loop Stepper Motor

Close Loop Stepper Motor With Encoder

Product Description

98mN.M 1024pm Close Loop Stepper Motor With Encoder NEMA14 35X20mm

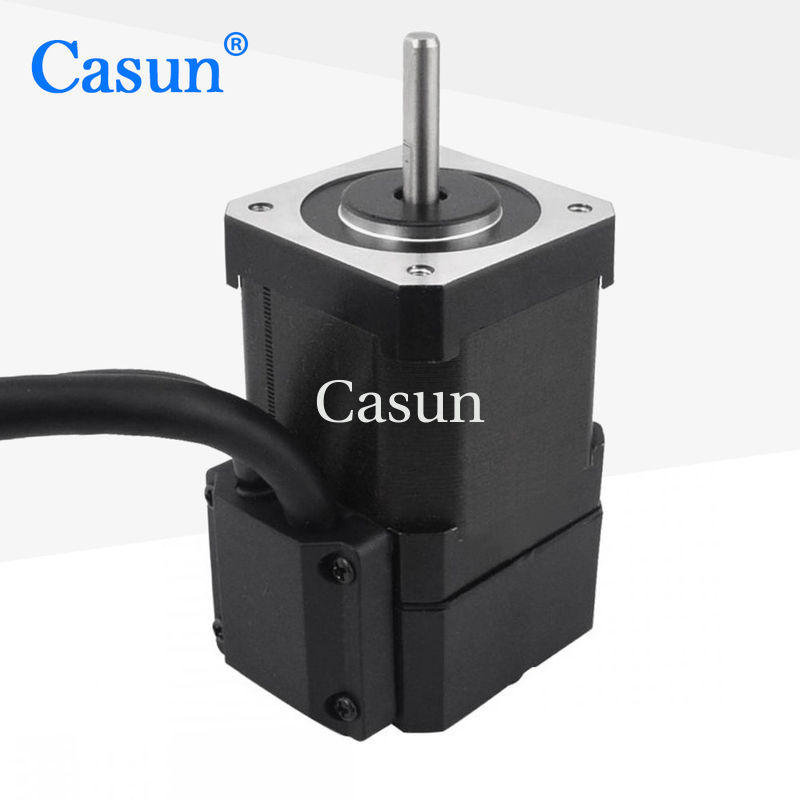

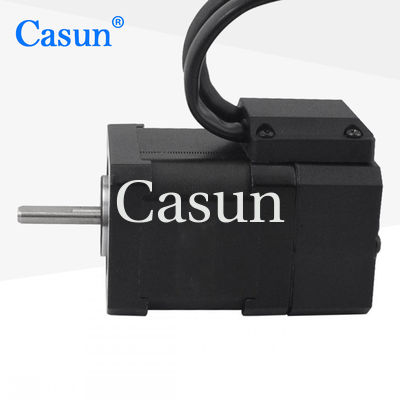

NEMA14 Closed Loop Stepper Motor with 98mN.m torque, 1.1Amp rating, and integrated encoder for precise position feedback and error correction.

Product Overview

Frame Size: NEMA 14 (35mm square)

Holding Torque: 90 mN.m (millinewton meter) - the torque produced when stationary without losing steps

Rated Current: 1.1 Amps - maximum current for specified torque

Closed-loop System: Integrated encoder provides position feedback to detect and correct step loss or position errors in real-time

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.1 Amp
Holding Torque	90 mN.m
Resistance	3.2 Ω
Inductance	2.7 mH
Rotor Inertia	12 g·cm²
Motor Weight	0.17 kg
Encoder Pulse	1024
Connection	Bipolar

Operating Specifications

Motor Operating Conditions:

Maximum Temperature: 80°C

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ω at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder Specifications:

Voltage: 5V

Output: A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Shaft Type	Rated Current
42SHD4950	0.13 N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26 N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45 N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59 N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8 N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motors cannot meet your requirements, we can customize motors according to your specific needs. Customization options include but are not limited to:

Special shafts
Custom winding parameters
Modified installation dimensions
Special requirement lead wires
Custom connectors

Available Options
