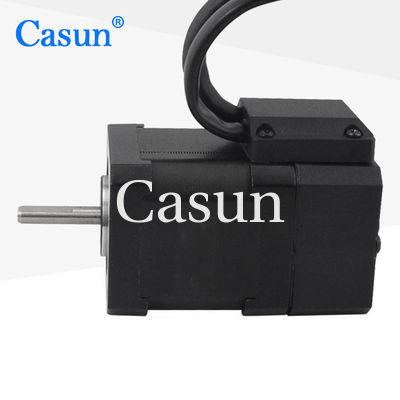

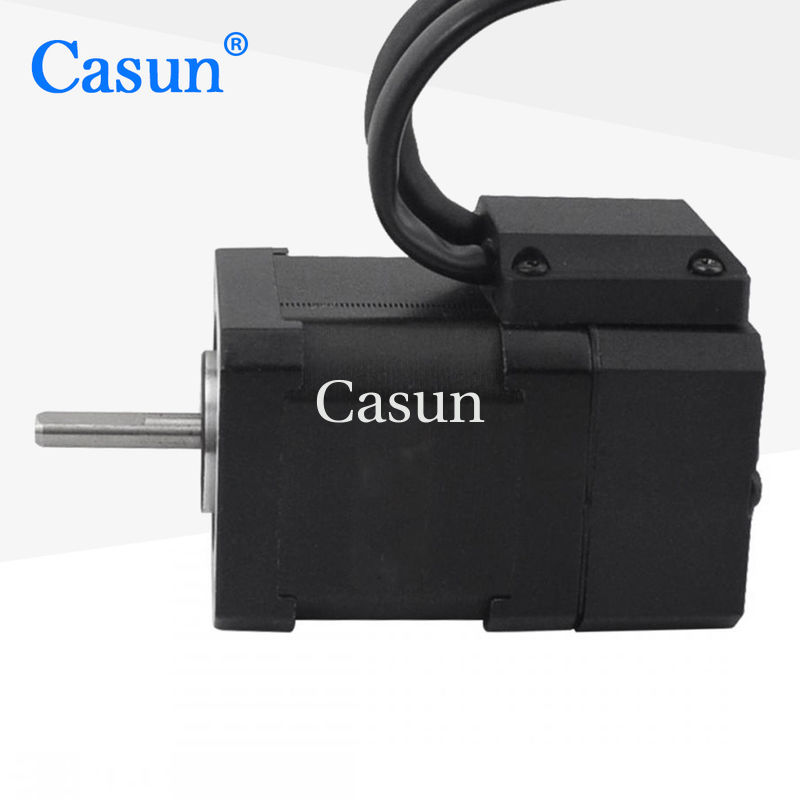

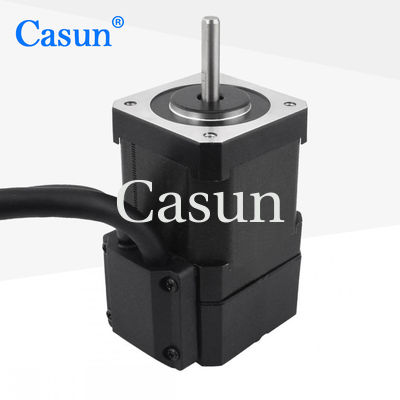

260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller

260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller

Close Loop Stepper Motor Nema 17

260mN.M Close Loop Stepper Motor

Close Loop Stepper Motor With Controller

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

42SHD0034-20Q

Contact Us

Request A Quote
Product Details
Color:
Black
Current / Phase:
1.24Amp
Holding Torque:
260mN.m
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$16.54-$24.94
Packaging Details
Carton:38x29x18cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Casun Close Loop Stepper Motor 260mN.M 42x34mm Stepper Motor With Nema 17 Stepper Motor Controller



Nema17 Closed Loop Stepper Motor 260mN.m 1.26Amp with Encoder

The NEMA 17 42x34mm stepper motor with 500mN.m torque and 1024ppr (pulses per revolution) is a specific type of stepper motor commonly used in various applications such as robotics, 3D printers, CNC machines, and automation systems. Let's break down the specifications:

  1. NEMA 17: This refers to the motor's standard size specification defined by the National Electrical Manufacturers Association (NEMA). It indicates the physical dimensions and mounting pattern of the motor.

  2. 42x34mm: The dimensions of the motor, specifying the diameter of the motor body (42mm) and the length 34mm).

  3. 2600mN.m torque: Torque is a measure of the motor's rotational force. In this case, the motor can generate a maximum torque of 260 millinewton meters (mN.m). This torque rating determines the motor's ability to drive loads and overcome resistance.

  4. 1024ppr: PPR stands for pulses per revolution, which indicates the number of electrical pulses the motor receives to complete one full revolution. In this case, the motor requires 1024 pulses to complete a full 360-degree rotation.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.28Amp

Holding Torque



260mN.m

Resistance



3.2 hm

Inductance



2.7mH

Rotor Inertia



12g-cm²

Motor weight



0.23 kg

Encoder Pulsh



1024PPR

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B -











Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller 1 260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller 2 260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller 3 260mN.M 42x34mm Close Loop Stepper Motor Nema 17 With Controller 4





Please click the "Get  a quote" button below to tell us your requirements.
