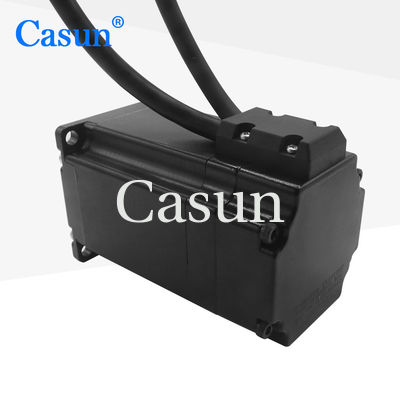

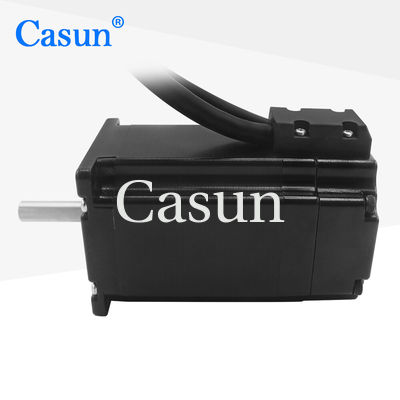

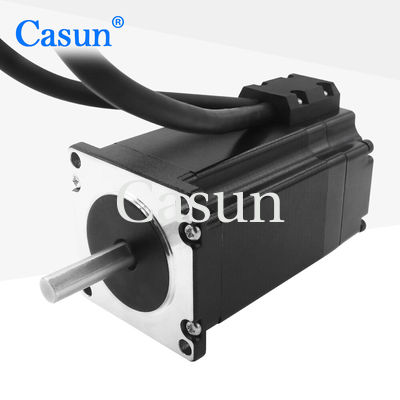

NEMA 24 4N.M 60x100mm Close Loop Stepper Motor 1000ppr Pinout 4 Wire

NEMA24 Stepper Motor 4N.M 60x100mm Close Loop Stepper Motor 1000ppr Stepper Motor Pinout 4 Wire

Casun Close Loop Stepper Motor nema17 4N.M 60x100mm Stepper Motor With Nema24 Stepper Motor Controller

The Close Loop Stepper Motor you mentioned is a specific type of stepper motor that incorporates a closed-loop control system to enhance its performance and accuracy. Here are the specifications you provided:


4N.m torque: The motor is capable of delivering a maximum torque of 4 Newton meters (N.m). Torque represents the motor's rotational force, and a higher torque rating indicates a greater ability to drive loads and overcome resistance.


60x100mm: These dimensions refer to the physical size of the motor. The motor has a diameter of 60mm and a length of 100mm.

The inclusion of a closed-loop control system in this stepper motor means that it utilizes feedback sensors to monitor the motor's actual position. These sensors provide information about the motor's real-time position, and this data is fed back to the control system. The control system compares the desired position with the actual position and adjusts the motor's operation to ensure accurate positioning.

By incorporating closed-loop control, this stepper motor can compensate for any missed steps or position errors that may occur in open-loop stepper motors. This closed-loop feedback mechanism helps maintain precise positioning, even in the presence of external disturbances or variations in load.

Close loop stepper motors are commonly used in applications that require high positioning accuracy, such as CNC machines, robotics, and automation systems. They offer improved performance and reliability compared to open-loop stepper motors by providing real-time feedback and correction of any position errors.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B -

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
