2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor

2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor

2A Nema 23 Stepper Motor

Closed Loop Nema 23 Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

57SHD0410-21Q

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
1N.m
Current:
2A
Motor Length:
54mm
Shaft:
21mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$19.9-$39.99
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

NEMA 23 1N.m  closed loop 1024PPR stepper motor kits with magnetic encoder for CNC machines

NEMA 23: The NEMA 23 standard defines the motor's size and mounting specifications. The NEMA 23 designation indicates the motor's physical dimensions, allowing for compatibility with NEMA 23 motor mounts.

1N.m torque: The motor can generate a maximum torque of 1 N.m, representing its rotational force. This torque rating determines the motor's ability to drive loads and overcome resistance in CNC applications.

Closed-loop control: The closed-loop control system is integrated into the stepper motor kit. It utilizes feedback from the magnetic encoder to continuously monitor the motor's position and make adjustments in real-time. This closed-loop control mechanism helps correct for any position errors or missed steps, ensuring accurate and reliable positioning.

1024PPR magnetic encoder: The magnetic encoder provides high-resolution feedback by generating 1024 pulses per revolution. This allows for precise positioning control and enables accurate tracking of the motor's actual position.

The NEMA 23 1N.m closed-loop stepper motor kit with a magnetic encoder and 1024 PPR resolution is well-suited for CNC machines that require precise and repeatable positioning. The closed-loop control system, combined with the magnetic encoder feedback, enhances the motor's performance by compensating for any errors or disturbances that may occur during operation. This results in improved accuracy, stability, and reliability, making it an ideal choice for CNC applications that demand high precision and control.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

Appearance

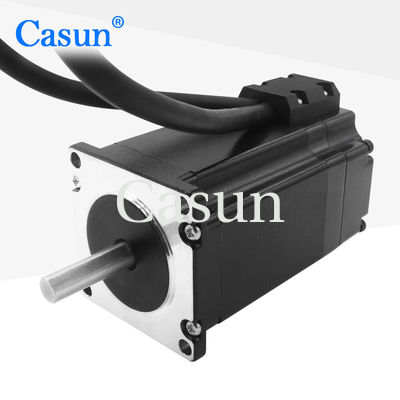

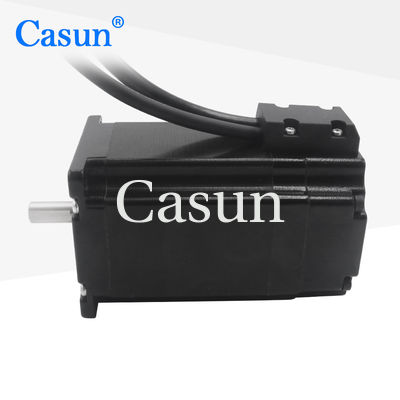

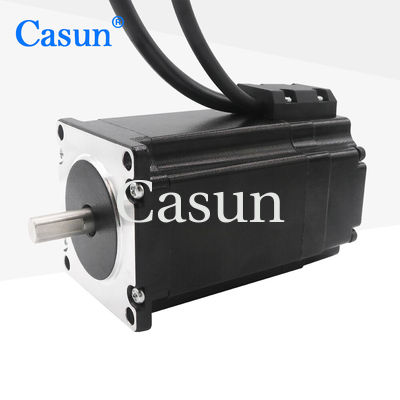

2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 0

Dimensions

2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 1

Motor Specifications



Step Angel

1.8 °

Fram Size

86mm

Number of Phase

2 Phase

Rated Current

2 A

Holding Torque

1N.m

Resistance

1.5ohm

Inductance

15 mH

Rotor Inertia

260 g-cm²

Motor weight

3.8 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves

2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 22A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 3







Submodels

Model Holding
Torque
Rated
Current
Resistance
per phase
Inductance
per phase
Detent
torque
Rotor
inertia
Lead
wire
Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4



























Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 4 2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 5 2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 6 2A Nema 23 Stepper Motor With Encoder 1024ppr 1000mN.M Closed Loop Stepping Motor 7
