1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines

name

1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines

Brand Name: Casun
Model Number: 57SHD0410-21Q
MOQ: 1PC
Price: $19.9-$39.99
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1N.m
Current:
3A
Motor Length:
100mm
Shaft:
24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

4N.M Closed Loop Step Motor

,

Nema 24 Closed Loop Step Motor

Product Description
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines
Product Overview

NEMA 24 4N.m closed loop 1000PPR stepper motor kits with magnetic encoder for laser machines. A closed-loop stepper motor system utilizes feedback to ensure accurate positioning. This system includes a magnetic encoder that provides position feedback to the motor controller, allowing real-time monitoring and adjustment of the motor's position to minimize errors and improve overall accuracy.

The 1000PPR (Pulses Per Revolution) specification indicates the resolution of the magnetic encoder, generating 1000 pulses for every complete revolution of the motor shaft. This high resolution enables precise control and positioning in laser machines and other applications requiring accurate movement.

Key Features
  • High torque and high precision
  • Suitable for high-tech industry and electronic industry equipment
  • Available in single or double shaft versions
  • Professional research and development manufacturing
Product Images

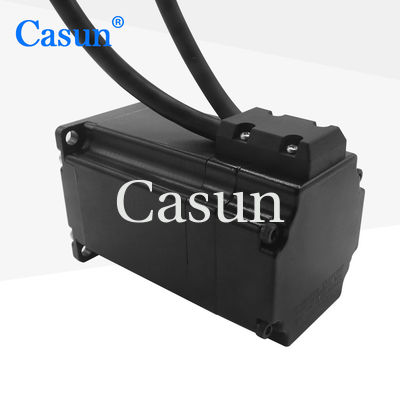

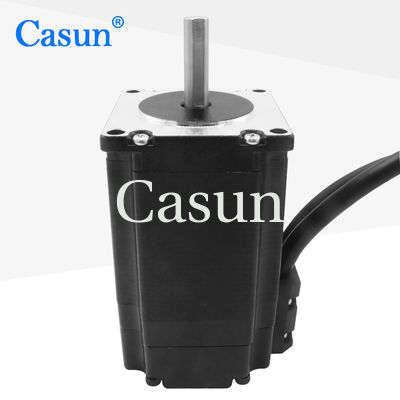

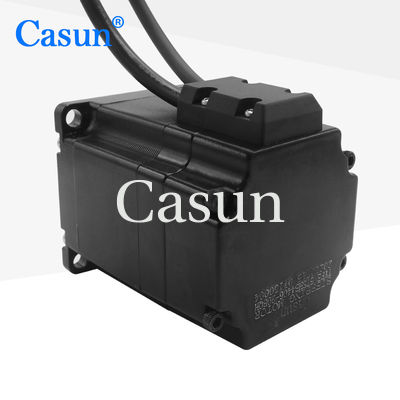

1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 0
Motor Appearance
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 1
Motor Dimensions
Motor Specifications
Step Angle 1.8°
Frame Size 60mm
Number of Phase 2 Phase
Rated Current 3A
Holding Torque 4N.m
Resistance 1.5ohm
Inductance 15 mH
Rotor Inertia 260 g-cm²
Motor Weight 1.4 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Performance Curves
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 2
Torque Curve
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 3
Performance Characteristics
Available Models
Model Holding Torque Rated Current Resistance per phase Inductance per phase Detent torque Rotor inertia Lead wire Motor length
60SHD4201 650 mN.m 0.6 A 15 Ω 20 mH 50 mN.m 280 g.cm² 4 No. 45 mm
60SHD4401 1500 mN.m 2.8 A 1 Ω 3.3 mH 70 mN.m 450 g.cm² 4 No. 56 mm
60SHD4601 3200 mN.m 4.2 A 0.75 Ω 3.7 mH 120 mN.m 580 g.cm² 4 No. 86 mm
60SHD6602 2500 mN.m 3 A 1.55 Ω 3.7 mH 120 mN.m 580 g.cm² 4 No. -
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 4
Brake
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 5
Gearbox
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 6
Shaft
1000ppr 4N.M 60x100mm Closed Loop Step Motor Nema 24 Encoder Stepper Motor For Laser Machines 7

Please click the "Get a quote" button below to tell us your requirements.
