NEMA 17 Miniature Planetary Gearbox Stepper Motor 1.5A 0.2N.M For Robot

NEMA 17 Miniature Planetary Gearbox Stepper Motor 1.5A 0.2N.M For Robot

Brand Name:	Casun
Model Number:	42SHD4516-7GH
MOQ:	1PC
Price:	$23.3-$26.3
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Body:

26mm

Step Angle(degrees):

1.8 Degree

Reduction Ratio:

6.75:1

Current:

1.5A

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Miniature Planetary Gearbox Stepper Motor

NEMA 17 Gearbox Stepper Motor

1.5A NEMA 17 Geared Stepper Motor

Product Description

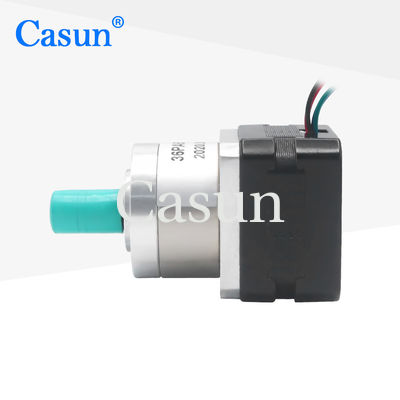

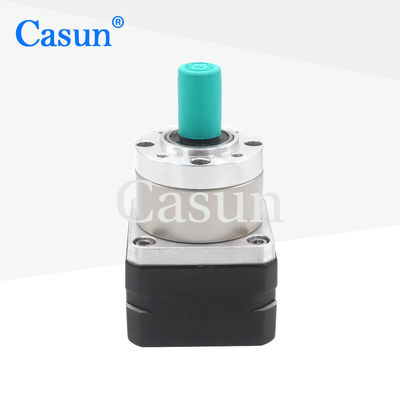

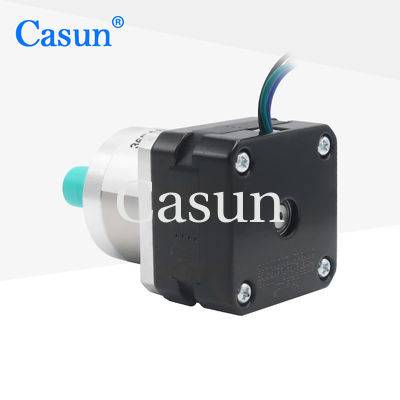

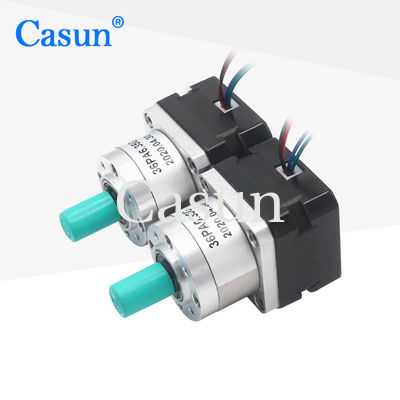

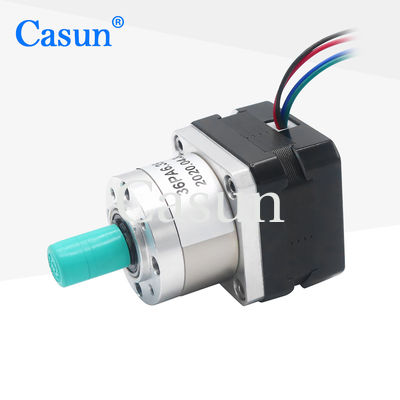

NEMA 17 Miniature Planetary Gearbox Stepper Motor 1.5A 0.2N.M For Robot

Product Overview

NEMA 17 Ratio 6.75:1 Miniature Planetary Gearbox Stepper Motor with 1.5A current rating and 0.2N.M torque, specifically designed for robotic applications. By using the deceleration device, this motor adjusts output torque and speed to a more suitable range. Adopting a precise gear transmission structure, it offers high durability and reliability.

Key Features

Bipolar or unipolar versions available
Multiple international certifications for high-tech and electronic industry equipment
Engineering support with 48-hour response time for optimal solutions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	200 mN.m
Resistance	1.8 Ω
Inductance	2.4 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.5 kg
Gear Reduction Ratio	6.75:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		13.76	80%
60 mm		19.2	80%
35 mm	42.7 mm	26.8	70%
		51	70%
		71	70%
		99.5	70%
		139	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
