1.5A Dual Shaft Stepping Motor NEMA 17 0.45N.M With 1.8° Step Angel

1.5A Dual Shaft Stepping Motor NEMA 17 0.45N.M With 1.8° Step Angel

Brand Name:	Casun
Model Number:	42SHD0217-20SH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

450mN.m

Current:

1.5A

Motor Length:

40mm

Shaft:

Dual Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

1.5A Dual Shaft Stepping Motor

0.45N.M Dual Shaft Stepping Motor

Product Description

Dual Shaft Stepping Motor NEMA 17 0.45N.M With Automotive Equipment

control the pulse signal to achieve position control. Compared to closed-loop control systems, its control method is simpler and more economical.

Textile machinery, medical equipment, robotic arms, and automotive equipment

Features:

Expertise in professional research and development manufacturing
For high-tech industry and electronic industry equipment
A ten-year warranty for confident purchasing
Specializing in drivetrain solutions
Providing "a wide range of international certifications" for high-tech and electronic industry equipment

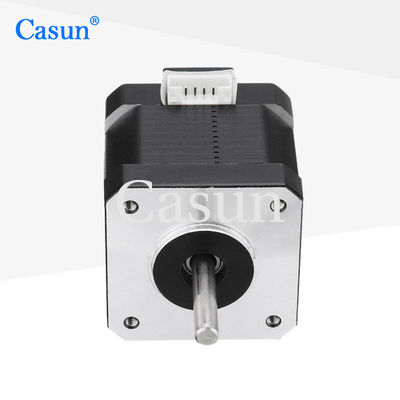

Appearance

1.5A Dual Shaft Stepping Motor NEMA 17 0.45N.M With 1.8° Step Angel 0

Dimensions

1.5A Dual Shaft Stepping Motor NEMA 17 0.45N.M With 1.8° Step Angel 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.2 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
