Special Shaft Stepper Motor
Created with Pixso.

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

name

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

Brand Name: Casun
Model Number: 42SHD0226-20SH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
0.4A
Motor Length:
40mm
Shaft:
Dual Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

20mm Length Dual Shaft Motor

,

NEMA 17 Dual Shaft Motor

Product Description

Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

The 42mm dual axis stepper motor is widely used to control the movement of the print head and achieve precise stacked printing.

It can adapt to different application requirements and can be flexibly integrated with other devices.



Features:

  • Expertise in professional research and development manufacturing

  • Each model of stepper motor can be suitable for different scenarios

  • Wanted dealers! !

  • Specializing in drivetrain solutions

  • Ten-year warranty and purchase with confidence

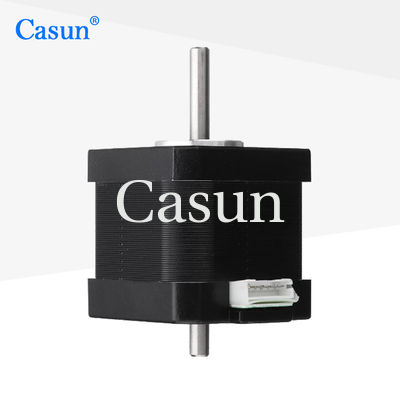

Appearance

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 0

Dimensions

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

400 mN.m

Resistance

30 ohm

Inductance

40 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

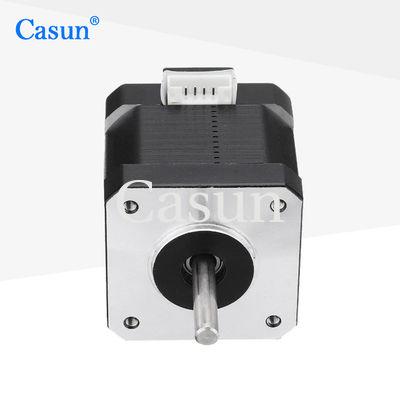

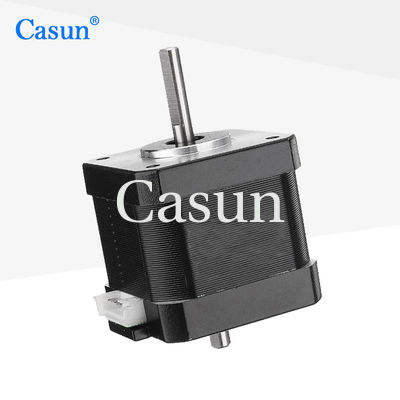

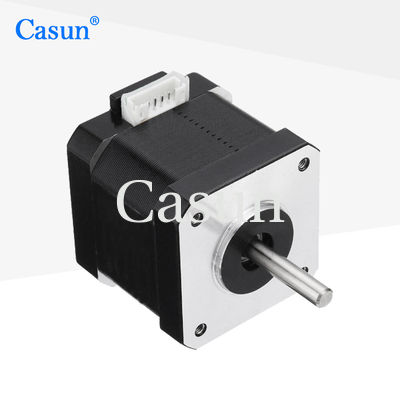

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 2 20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 3 20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 4 20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 5



Please click the "Get a quote" button below to tell us your requirements.
